Shelly Uni
Smart Wi-Fi-operated module

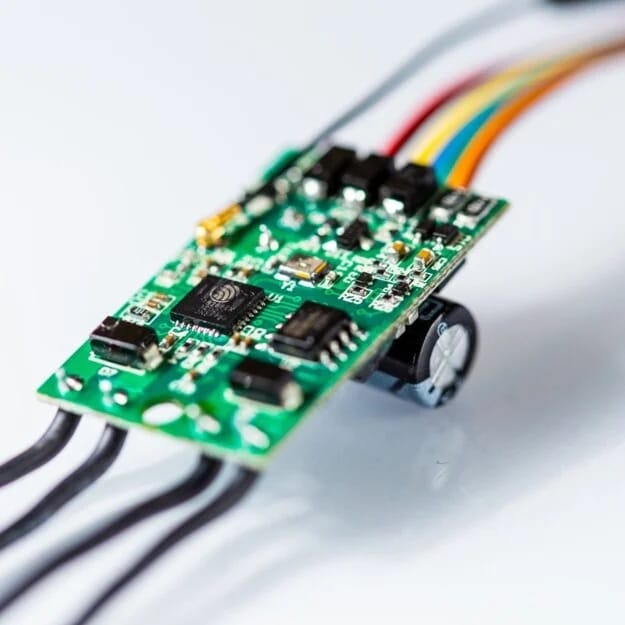

With this tiny insulated chip, you can control sensors and measure data to trigger actions.
- Suitable for low-voltage AC and DC applications (12V – 24V AC and 12V-36V DC)
- Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
- Has an embedded web server and connects to your Wi-Fi network
Why Shelly UNI?
Convert anything to smart
Fit the tiny Shelly UNI relay anywhere you desire! It’s suitable for low-voltage applications and can monitor various types of sensors, keeping you fully informed of your facility’s condition. Even though there is no plastic box surrounding it, the transparent cover over the chip insulates and protects it from any possible dangers to the device or your home appliances.
Functionalities
Wi-Fi Operated
Connect Shelly Uni to your Wi-Fi network. No HUB required!
Digital inputs
Can support differing voltages and work separately from 2.2-36VDC and 12-24VAC
Potential-free outputs
Two potential-free outputs that can switch up to 36VAC and 24VDC
Wide range of voltage support
Shelly UNI can be powered with 12V-36VDC and 12V-24VAC
Custom schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset automatically
Smart scenes
Set custom scenes by combining Shelly UNI with your other Shelly devices.
Endless use applications
Use Cases
Door lock control
Never again worry if you locked the front door before you leave. With Shelly UNI you can manage your door lock remotely! That way you will not have to rush home if your children are back from school before you’ve finished work, or if you’ve forgotten your keys inside while going out to run a quick errand. With just a press of a button, Shelly UNI eliminates the need for your keys.
Tiny with a sensor interface
Shelly UNI’s dual range enables you to connect any analog sensor and measure it, allowing you to complete highly sophisticated and powerful scenes. Additionally, Shelly UNI can be connected to 3 programmable resolution digital thermometers DS18B20 or a single temperature and humidity digital sensor DHT22. Precisely measure temperature and humidity in your facility and take appropriate action using scenes with other Shelly devices.
Recommended
Use Cases
Never miss the doorbell again
Don’t worry if you are doing some gardening in the backyard and you don’t hear the doorbell. Shelly UNI will ensure that you receive a notification on your smartphone when the doorbell rings – and allow you to open the door using the app or your voice. That way you will not miss the delivery person ever again!
Use Cases
Adventure friendly
Shelly Uni works on 12 to 36 VDC, making it perfect for the automation of your camper and its appliances! Use the analog input to measure your camper batteries and receive an instant notification to your phone if they’re running low. Together with other Shelly devices, you can turn off connected appliances to take further action and save power. Additionally, you can use its binary inputs to detect if a door has been opened and be alerted of a potential break-in while you’re away.
Full compatibility
Full compatibility
smart home control, perfected
shelly smart control
Get the app on:
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Get the app on:
specifications
| POWER | |
|---|---|
| Power supply AC | 12V – 24V |
| Power supply DC | 12V – 36V |
| SPECIAL FUNCTIONS | |
| Inputs | 2 Separated digital inputs from 2.2-36V DC and 12-24V AC |
| Outputs | 2 Potential free outputs up to 24VAC and 36VDC, max 100 mA, 300mW each |
| Overload protection | No |
| Power measurement | 1 ADC – dual ranges from 0-12V and 0-30V |
| FEATURES | |
| Channels | 2 Channels |
| Operational temperature | 0 to + 40 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless/WiFi Protocol | 802.11 b/g/n |
| Radiofrequency | 2400 – 2500 MHz |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 20mm x 33mm x 13mm |
