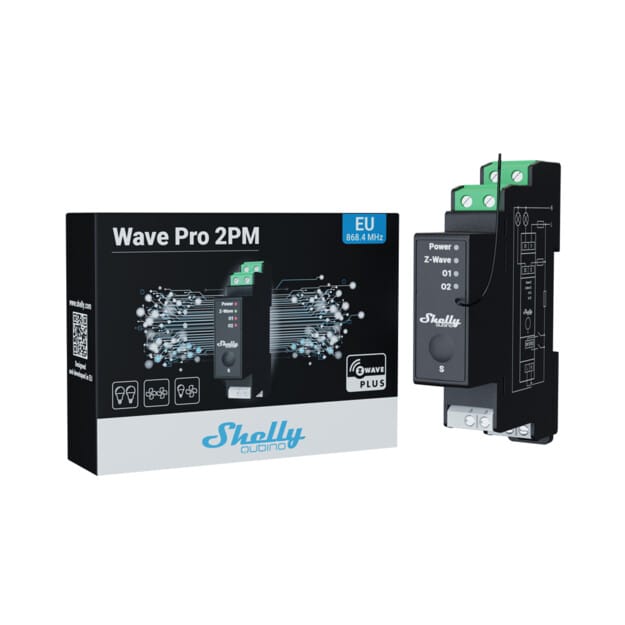

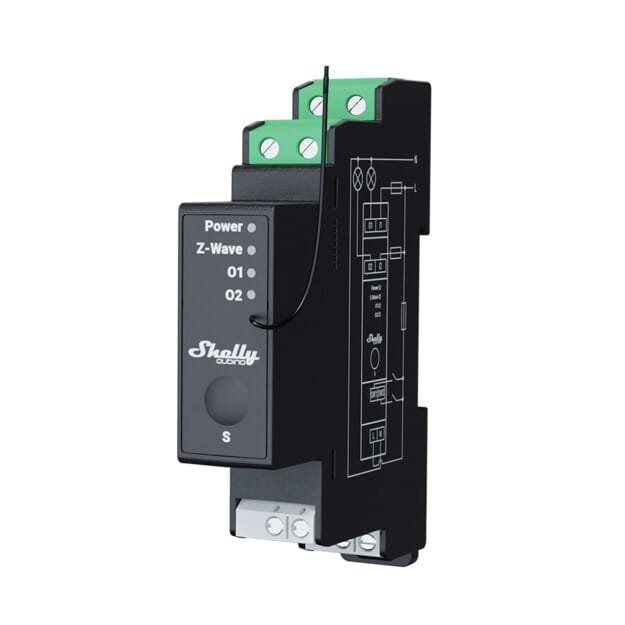

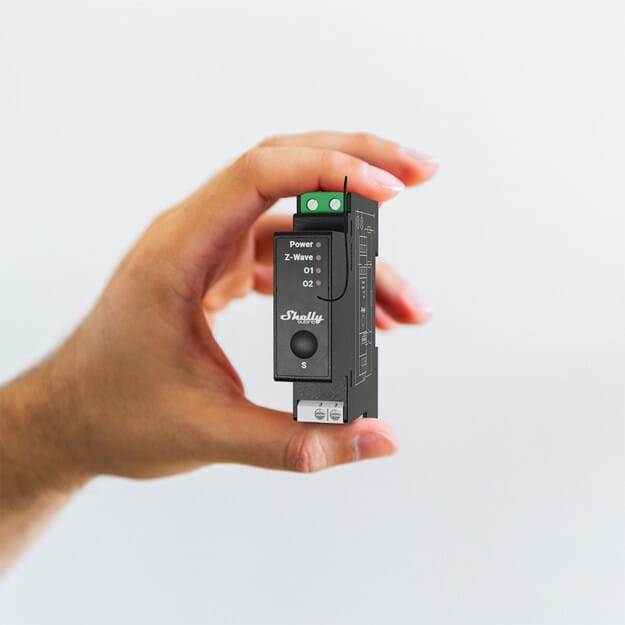

Shelly Qubino Wave Pro 2PM
97.00 JOD
Professional 2-channel DIN rail Z-Wave® smart switch with power metering
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.
- 2 outputs, 16 A each. Total device maximum of 25 A.
- Power metering on each channel separately and together
- DIN-rail mountable
- 1-phase control
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Why Wave Pro 2PM?
The best solution for new home buildings and business facilities
Wave Pro 2PM is a one-phase, 2-channel relay, supporting up to 16 A per channel with a total device capacity of 25 A. It is equipped with two integrated power meters that allow customers to control and monitor the consumption for each channel separately and or together. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs.
introduction to z-wave
Shelly Qubino works on
Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway
Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Include Wave Pro 2PM to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
2 outputs, 16 A each
Wave Pro 2PM has a total device output of 25 A.
Power monitoring
Wave Pro 2PM provides precise monitoring of the power consumption on each channel (W) or together (W, kWh).
Wide range of voltage support
Use it to control a wide range of AC devices and appliances.
Associations
Establish direct communication between devices in your Z-Wave local network and set actions with no hub present!
The highest level of security
Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.
Endless use applications
Dynamic lights control for improved efficiency
Automate your lights and optimize their energy consumption through smart schedules, scenes, actions, etc. Wave Pro 2PM allows you to automate the lights on each floor separately and set custom schedules for each of them. Set all lights in the office to switch off when everyone has left the premises and never worry about wasting energy during non-working hours.
Smart conference room
Automate the conference rooms so that they are fully ready for your business meetings. Establish a local (direct) communication between Z-Wave devices within your network and execute actions without Z-Wave gateway. The motion sensor* will trigger the Wave Pro 2PM to turn on the lights and the projector, so the conference room is instantly ready for your presentation!
*Any Z-Wave motion or door sensor can be used with Wave Pro 2PM
Track and optimize your energy usage
Keep an eye on real-time consumption of appliances and stop unnecessary energy usage in the office over the weekend! With Wave Pro 2PM you can precisely measure power consumption for each channel separately (W) and together (W, kWh). There are many appliances that employees forget to turn off when leaving the office on Friday, such as monitors, plugged chargers, desk lights, or printers, unnecessarily burdening the monthly bills. Use smart schedules to cut off the power supply of the office appliances over the weekend and to restore it before the employees arrive at the office.
Preventative management
When an electrical appliance is damaged, it doesn’t simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Wave Pro 2PM, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.
Wave Pro Series
Enhanced with overheating, overpower, and overvoltage* load protection, Wave Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
*Overpower and overvoltage features are available only for power metering-enabled devices.
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
specifications
| Power supply | 110-240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0.3 W |
| Power measurement (W) | Yes |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A per channel, 25 A total |
| Max. switching voltage DC | N/A |
| Max. switching current DC | N/A |
| Overheating protection | Yes |
| Overload protection | Yes |
| Overvoltage protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater: | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave frequency bands | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in |
| Weight | 75 g / 2.65 oz. |
| Mounting | DIN rail |
| Screw terminals max. Torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm²/ 20 to 16 AWG (white connectors) |
| Conductor stripped length | 6 to 7 mm² / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (white connectors) |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. Altitude | 2000 m / 6562 ft. |
