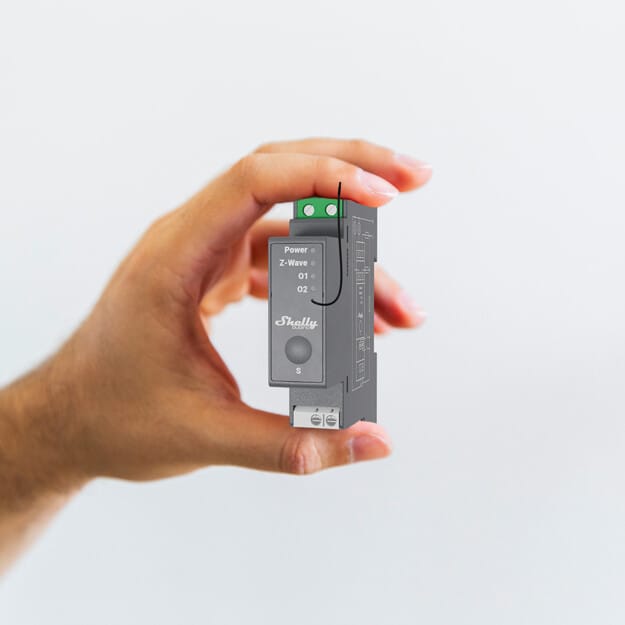

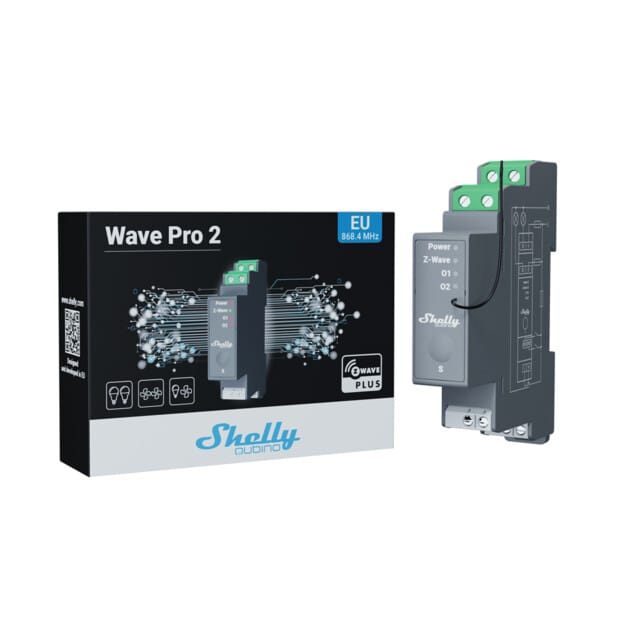

Shelly Qubino Wave Pro 2
77.00 JOD
Professional 2-channel DIN rail Z-Wave® smart switch with dry contacts
Suitable for home and facility automation with remote control. DIN rail mountable inside a breaker box. Enhanced safety features.
- 2 outputs, 16 A each. Total device maximum of 25 A.
- Potential-free contacts (dry contacts)
- DIN-rail mountable
- 2-phase control
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Why Wave Pro2?
The best solution for new home buildings and business facilities
Wave Pro 2 is a two-phase, 2-channel relay supporting up to 25 A for professional lights and appliance automation for residential or commercial use. It is equipped with potential-free outputs (dry contacts), offering high flexibility in voltage support and applications. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs.
introduction to z-wave
Shelly Qubino works on
Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway
Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Include Wave Pro 2 to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
2 outputs, 16 A each
It has a total device output of 25 A.
Dry contacts
Supporting low and high voltages, this device enables you to control a wide range of AC devices and appliances.
DIN-mountable
Intended to be installed inside the breaker box and designed to meet the global DIN rail standardization.
Associations
Establish direct communication between devices in your Z-Wave local network and set actions with no hub present!
The highest level of security
Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.
Use Cases
Endless use applications
Use Cases
Control lights on 2 phases
Automate the lights and optimize their energy consumption through smart schedules, timers, scenarios, etc. Wave Pro 2 allows you to control the lights on 2 phases and manage them separately by setting custom schedules and smart timers. Set the lights on the operational floors to switch off completely after the working day is over and switch back on only where it is necessary at 7:00 in the morning. This way, you will not have to worry about any forgotten lights or efficiency.
Use Cases
Automate your valves
Use Wave Pro 2 to control the motorized valves in your water distribution box and control heating, cooling, or any other motorized valve in your facility. This way, you can protect your premises from flooding and make your spending more efficient by setting the schedules, scenes, or associations. Smart schedules combined with Z-Wave temperature & humidity sensors* will provide dynamic control of the heating system for an optimal indoor climate.
*Any Z-Wave temperature & humidity sensor can be used with Wave Pro 2.
Sockets automation for efficient energy usage
Make sure that no energy goes to waste by automating the sockets’ power supply with Wave Pro 2 and use the smart scheduling to cut off the power to all non-essential heavy consuming electrical appliances in offices between 7:00 PM and 7:00 AM during the weekdays and over the weekend. That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.
Personalization at its best
Experience ultimate control with position-adjustable blinds, allowing you to tailor natural light levels and perfect the workspace atmosphere according to your preferences. Enjoy the flexibility of manual operation through switches or push-buttons, accommodating the unique needs of each office member. Also, with Wave Pro Shutter, you can effortlessly adjust the position and angle of your venetian blinds directly from your smart home app. Control the blinds without ever leaving your desk, ensuring uninterrupted workflow and maximum productivity.
Wave Pro Series
Enhanced with overheating, overpower, and overvoltage* load protection, Wave Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
*Overpower and overvoltage features are available only for power metering-enabled devices.
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
specifications
| Power supply | 110-240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0.3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A per channel, 25 A total |
| Max. switching voltage DC | N/A |
| Max. switching current DC | N/A |
| Overheating protection | Yes |
| Power measurement (W) | No |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater: | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency bands | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in |
| Weight? | 73 g / 2.58 oz. |
| Mounting | DIN rail |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (white connectors) |
| Shell material | Plastic |
| Color | Grey |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft. |
