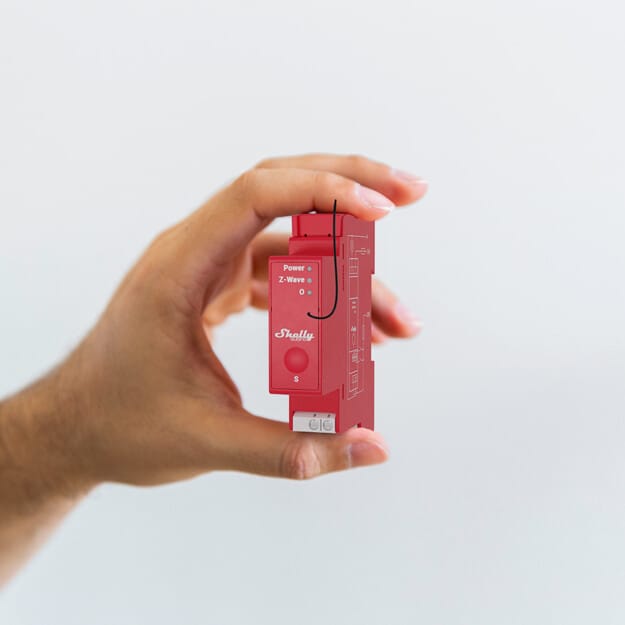

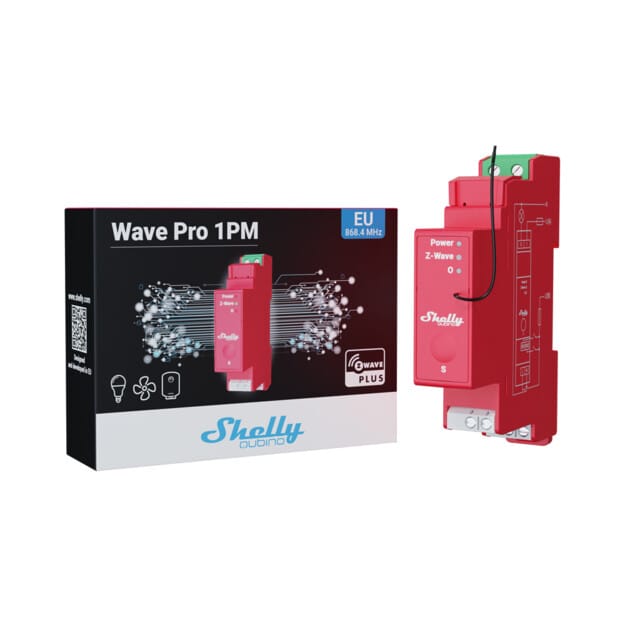

Shelly Qubino Wave Pro 1PM
71.00 JOD
Professional 1-channel DIN rail Z-Wave® smart switch with power metering
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.
- 1 output, 16 A
- Power metering
- DIN-rail mountable
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Why Wave Pro 1PM?
The best solution for new home buildings and business facilities
Wave Pro 1PM is a one-phase, 1-channel relay supporting up to 16 A. Equipped with an integrated power meter, Wave Pro 1PM allows you to measure the power consumption of all automated lights or heavier appliances. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs.
introduction to z-wave
Shelly Qubino works on
Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway
Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Include Wave Pro 1PM to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
1 channel, 16 A
Wave Pro 1PM has a total device output of 16 A.
Power monitoring
Wave Pro 1PM provides precise monitoring of the power consumption.
Wide range of voltage support
Use it to control a wide range of AC devices and appliances.
Associations
Establish direct communication between devices in your Z-Wave local network and set actions with no hub present!
The highest level of security
Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.
Use Cases
Appliances control & monitoring
Predict monthly costs and plan your spending better! Automate the electrical appliances in the restaurant and track their energy consumption wherever you are. Receive a notification in case an appliance is forgotten and left working outside of restaurant working hours, reminding you to switch it off to avoid electricity consumption waste. Additionally, you can set smart schedules and cut off the power to all unused electrical appliances during the night and turn them back on right before the kitchen opens.
Avoid unnecessary energy usage by controlling the office equipment power supply
Stop unnecessary energy usage in the office over the weekend! Computers and monitors that somebody forgot to turn off, plugged chargers, lit up desk lights, printers and copy machines left switched on, etc. – all these appliances are consuming energy when nobody is in the office, unnecessarily burdening the monthly bills. Avoid that by setting Wave Pro 1PM to cut off the power supply of the office appliances over the weekend to save on energy. Use smart scheduling functions to restore the power supply before the employees arrive at the office.
Preventative management
When an electrical appliance is damaged, it doesn’t simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Wave Pro 1PM, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.
Wave Pro Series
Enhanced with overheating, overpower, and overvoltage* load protection, Wave Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
*Overpower and overvoltage features are available only for power metering-enabled devices.
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
specifications
| Power supply | 110-240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0.3W |
| Power measurement (W) | Yes |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A |
| Max. switching voltage DC | N/A |
| Max. switching current DC | N/A |
| Overheating protection | Yes |
| Overload protection | Yes |
| Overvoltage protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency bands | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency bend(s) | < 25 mW |
| Size (H x W x D) | 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in |
| Weight | 61 g / 2.15 oz. |
| Mounting | DIN rail |
| Screw terminals max. Torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors) |
| Shell material | Plastic |
| Color | Red |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. Altitude | 2000 m / 6562 ft. |
