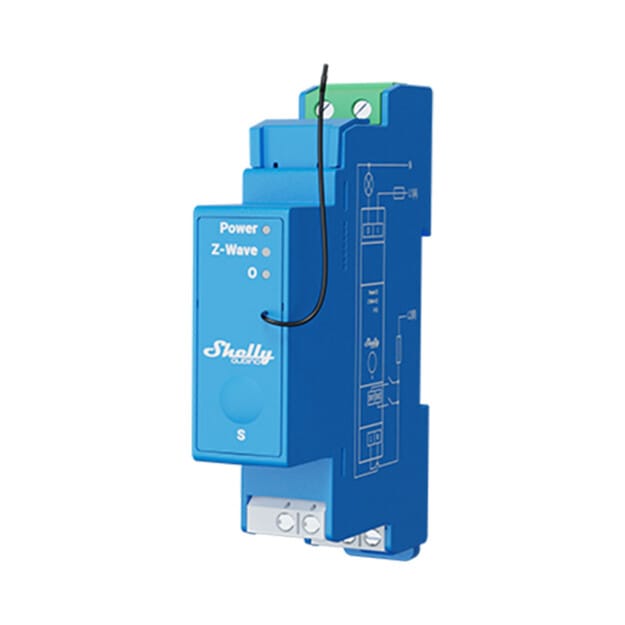

Shelly Qubino Wave Pro 1
58.00 JOD
Professional 1-channel DIN rail Z-Wave® smart switch with dry contacts
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.
- 1 output, 16 A
- Potential-free contacts (dry contacts)
- DIN-rail mountable
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Why Wave Pro 1?
The best solution for new home buildings and business facilities
Wave Pro 1 is a one-phase, 1 channel relay supporting up to 16 A for professional lights and appliance automation in residential or commercial applications. It is equipped with potential-free outputs (dry contacts) offering high flexibility in voltage support and applications. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs.
introduction to z-wave
Shelly Qubino works on
Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway
Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Include Wave Pro 1 to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
1 channel, 16 A
It has a total device output of 16 A.
Dry contacts
Supporting low and high voltages, this device enables you to control a wide range of AC devices and appliances.

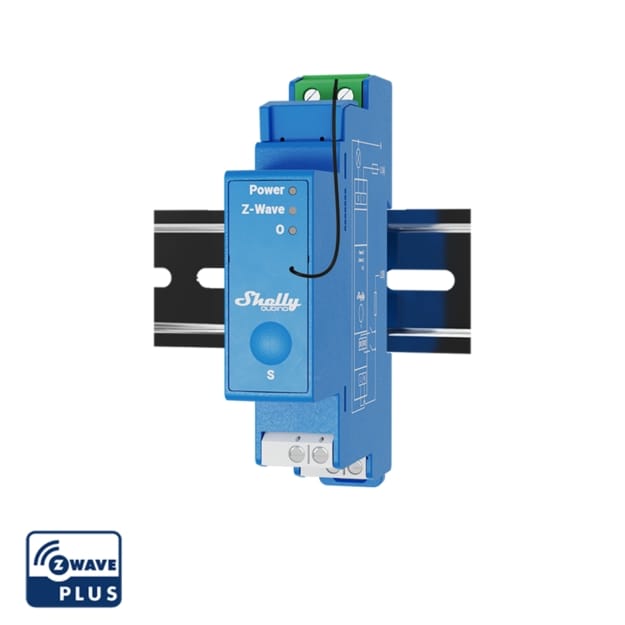

DIN-mountable
Intended to be installed inside the breaker box and designed to meet the global DIN rail standardization.
Associations
Establish direct communication between devices in your Z-Wave local network and set actions with no hub present!
The highest level of security
Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.
Endless use applications
Dynamic lights control for improved efficiency
Automate your lights and optimize their energy consumption through smart schedules, scenes, actions, etc. Wave Pro 1 allows you to automate the lights on each floor separately and set custom schedules for each of them. Set all lights in the office to switch off when everyone has left the premises and never worry about wasting energy during non-working hours.
Sockets automation for efficient energy use
Make sure that no energy goes to waste by automating the sockets’ power supply with Wave Pro 1 and set smart schedules to cut off the power to all electrical appliances between 7:00 PM and 7:00 AM during the weekdays and between 7:00 PM on Friday and 7:00 AM on Monday. That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.
Use Cases
Common space automation
Common spaces such as halls, garages, and storage rooms usually have their lights constantly switched on, which leads to inefficient usage of energy and unnecessary monthly costs. Set the actions, so the motion sensor* will trigger the Wave Pro 1 to switch the lights on when someone enters and switch them off once the premises are empty. This will ensure the most efficient use of the lights in the common spaces.
*Any Z-Wave motion sensor can be used with Wave Pro 1
Wave Pro Series
Enhanced with overheating, overpower, and overvoltage* load protection, Wave Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
*Overpower and overvoltage features are available only for power metering-enabled devices.
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
specifications
| Power supply | 110-240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0,3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A |
| Max. switching voltage DC | N/A |
| Max. switching current DC | N/A |
| Overheating protection | Yes |
| Power measurement (W) | No |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency bands | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency bend(s) | < 25 mW |
| Size (H x W x D) | 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in |
| Weight | 60 g / 2.12 oz. |
| Mounting | DIN rail |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm / 20 to 14 AWG (green connector) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors) |
| Shell material | Plastic |
| Color | Blue |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft. |
