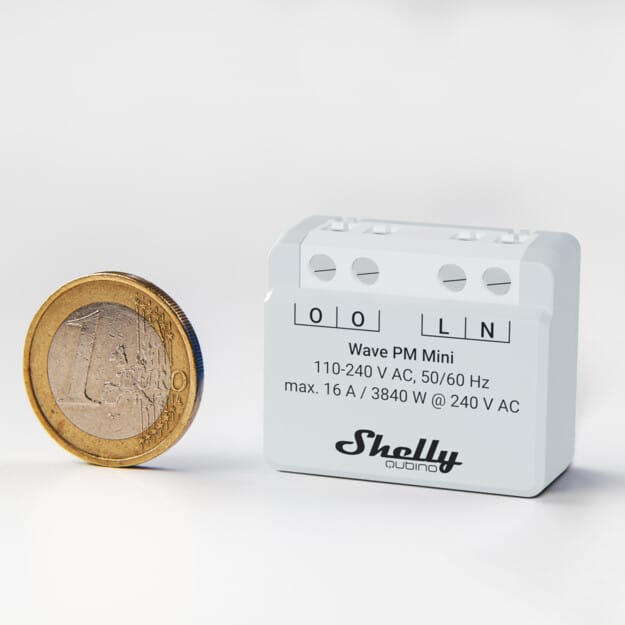

Shelly Qubino Wave PM Mini
25.00 JOD
Z-Wave® smart power meter, 1 channel 16 A
The smallest Z-Wave power meter in the world for precise power monitoring. Track electrical appliances’ power consumption from anywhere and optimize your energy usage. Thanks to its compact retrofit design, it is small enough to fit into even the most tightly packed spaces and electrical wall boxes.
*This is only a power meter. There is no relay inside.
- Supports up to 16 A at 240 V AC
- Power metering
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates
- Fast and simple installation in most standard electrical boxes and switches
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
why Wave PM Mini?
Mini Size, Mini Price
Designed with convenience in mind, this Mini power meter has the powerful capability of energy consumption monitoring fit into a compact and space-saving form factor. Wave PM Mini is perfect for those tight spaces where traditional devices simply won’t fit. Despite their small size, the Wave Mini devices don’t compromise on performance or functionality.
introduction to z-wave
Shelly Qubino works on
Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway
Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Include Wave PM to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
Supports up to 16 A
The device can measure power consumption of a load of up to 16 A.
Power Monitoring
Wave PM Mini provides precise power consumption monitoring.
Wide range of voltage support
Use it to monitor a wide range of AC devices and appliances.
Associations
Establish direct communication between devices in your Z-Wave local network and set actions with no gateway present!
Smart Scenes
Set custom scenes by combining Wave PM Mini with any other Z-Wave devices (gateway required).
Why Wave PM Mini?
Size does matter!
Wave Mini devices open a world of possibilities, allowing you to seamlessly integrate them into even the most tightly packed spaces and switch boxes. Thanks to their reduced size, Wave Mini devices fit effortlessly into all kinds of electrical boxes, including Danish wall boxes. Furthermore, they can be discreetly installed directly within the appliance you want to control or monitor.
Fits everywhere!
Danish switch boxes
Inside appliances
Jammed switch boxes
Endless use applications
Preventative management
When an electrical appliance is damaged, it doesn’t simply stop working. Usually, it increases the amount of energy used to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Wave PM Mini, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.
Track your power consumption and enhance cost-effectiveness
It can happen sometimes that we forget to switch off all the lights or leave an appliance we don‘t need during the night on, which generates unnecessary energy. Wave PM Mini‘s power monitoring enables the detection and eradication of excess energy consumption across your household. Together with smart scenes, you can use Wave PM Mini‘s data to set off scenarios, such as turning off appliances during a spike to protect them or during the night to save energy.
specifications
| Power supply | 110-240 V AC / 24–30 V DC |
|---|---|
| Power consumption | < 0.3 W |
| Power measurement (W) | Yes |
| External protection | 16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Max measurement power | 3840 W |
| Max measurement current | 16 A |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater | Yes |
| CPU | Z-WaveS800 |
| Z-Wave frequency bands | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size(H x W x D) | 29x35x16 ±0.5 mm / 1.11×1.35×0.63 ±0.02 in |
| Weight | 13 ±1 g / 0.46 ±0.04oz |
| Mounting | Wallbox |
| Screw terminals max.torque | 0.4Nm/ 3.54lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Lightgrey |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max.altitude | 2000 m / 6562ft. |
