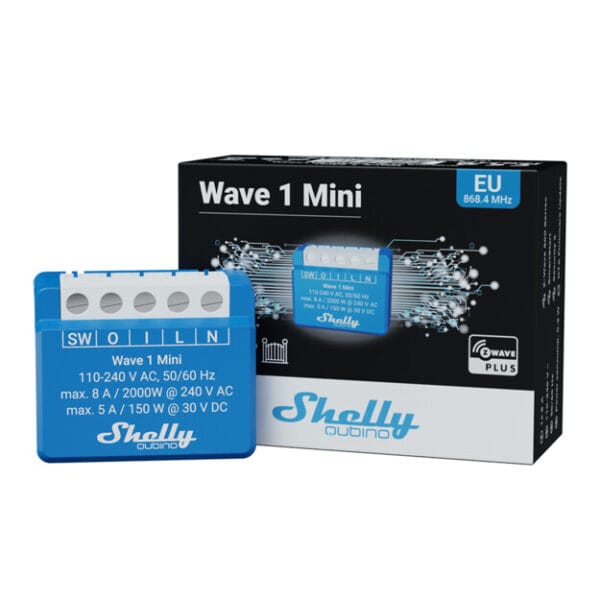

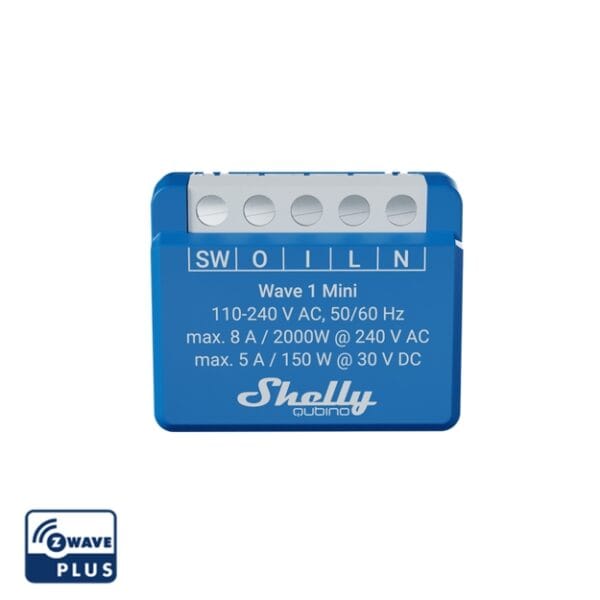

Shelly Qubino Wave 1 Mini
24.00 JOD
Z-Wave® smart switch, 1 channel 8 A with dry contacts
The smallest Z-Wave smart switch in the world for smart control. Automate and remotely control a wide range of small electrical appliances, such as locks, garage doors, irrigation systems, and lights. Due to its compact design, Wave 1 Mini is a perfect fit for even the smallest switch boxes and/or appliances.
- Supports up to 8 A at 240 V AC and 5 A at 30 V DC
- Dry contacts (potential-free)
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates
- Fast and simple installation in most electrical boxes and switches
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
why Wave 1 Mini?
Mini Size, Mini Price

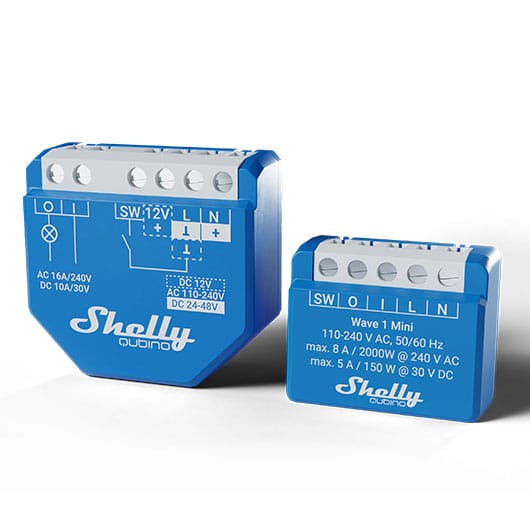

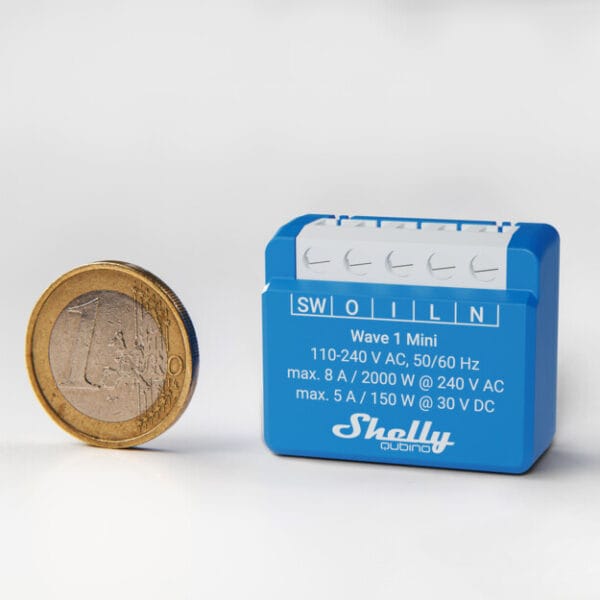

Designed with convenience in mind, this mini switch has all the capabilities of the Wave 1 fit into a compact and space-saving form factor. With its size reduced by 35% compared to its predecessor, Wave 1 Mini is perfect for those tight spaces where traditional modules simply won’t fit. Despite their small size, Wave Mini devices don’t compromise on performance or functionality.
introduction to z-wave
Shelly Qubino works on
Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway
Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Include Wave 1 Mini to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
Dry Contacts
Connect different power supply loads (up to 8 A) to the device.
Associations
Establish direct communication between devices in your Z-Wave local network and set custom actions with no hub present!
Wide range of voltage support
Use a wide range of output voltage levels. Supports low voltages.
Smart Schedules
Create personalized schedules aligned with your daily routine or synchronize with sunrise/sunset to manage your lighting (gateway required).
Smart Scenes
Set custom scenes by combining Wave Pro Shutter with any other Z-Wave devices (gateway required).
Why Wave 1 Mini?

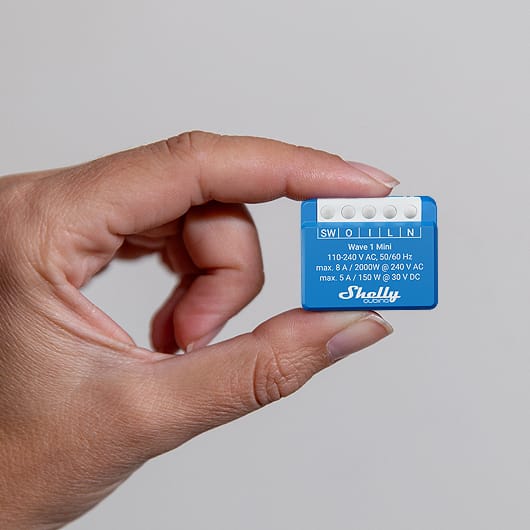

Size does matter!
Wave Mini devices open a world of possibilities, allowing you to seamlessly integrate them into even the most tightly packed spaces and switch boxes. Thanks to their reduced size, Wave Mini devices fit effortlessly into all kinds of electrical boxes, including Danish wall boxes. Furthermore, they can be discreetly installed directly within the appliance you want to control or monitor.
Fits everywhere!
Danish switch boxes
Inside appliances
Jammed switch boxes
Endless use applications
Synchronize your lights with your daily routine

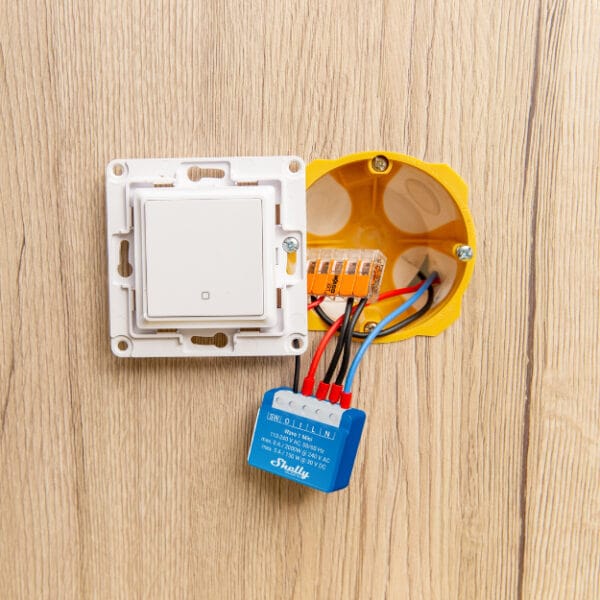

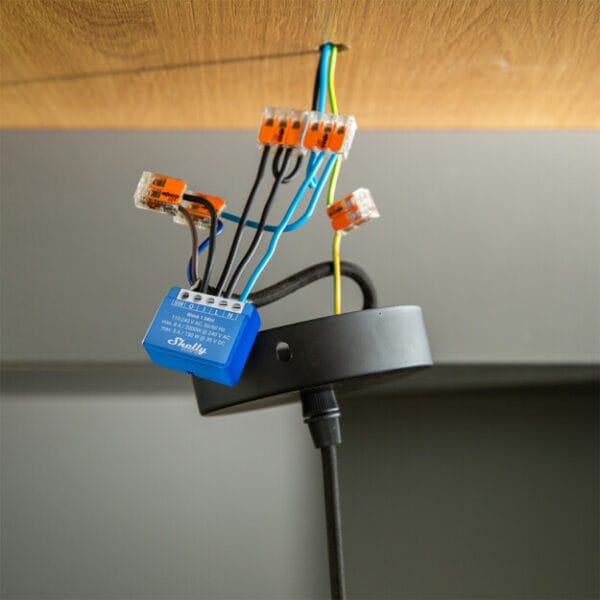

With its compact size, Wave 1 Mini can fit behind any light switch or even within the ceiling rose of your lamp. Synchronize your lighting to sunset times to adjust to the changing daylight hour, ensuring your home is always pleasantly illuminated and welcoming, when the house is occupied. Additionally, you can automate lights to turn off after you family‘s bedtime, preventing lights being on all night and avoid unnecessary energy consumption.
Make any small electrical appliance in your home smart
Transform any electrical appliance in your home, whether old or new, into smart device with Wave 1 Mini. Its 8 A limit is perfect for small to medium-sized appliances, such as lamps, electric water kettles, and others. Place it in the socket or fit it discreetly inside the appliance’s casing, avoiding the need for additional external wiring.
Control your garage door remotely
Wave 1 Mini’s compact design allows for flexible placement options, enabling you to install it directly within the garage door opener’s housing or even near the motor. Its 8 A power handling capability ensures reliable garage door control, allowing you to conveniently operate your garage door remotely without the need for bulky external modules.
Automate your irrigation system for effortless gardening
Wave 1 Mini’s smaller form factor allows it to be installed modestly near the irrigation system’s control panel or inside waterproof enclosures, ensuring protection from the elements. Its 8 A capacity is perfectly suitable for managing irrigation valves, offering effortless watering of your garden with a tap on your smartphone, even when you‘re on holiday. For complete peace of mind, simply set the schedule, and the sprinklers will automatically turn on and off. Yes, it‘s that easy.
specifications
| Power supply | 110 – 240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0,3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 8 A |
| Max switching power AC | 2000 W |
| Max. switching voltage DC | 30 V |
| Max. switching current DC | 5 A |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.)(depends on local condition) |
| Z-Wave® repeater: | Yes |
| CPU | Z-Wave® S800 |
| Z-Wave® frequency bands: | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 29x35x16 ±0.5 mm / 1.11×1.35×0.63 ±0.02 in |
| Weight | 19 ±1 g / 0.65 ±0.04 oz |
| Mounting | Wall box |
| Screw terminals max. Torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 1.5 mm / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Blue |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. Altitude | 2000 m / 6562 ft. |
