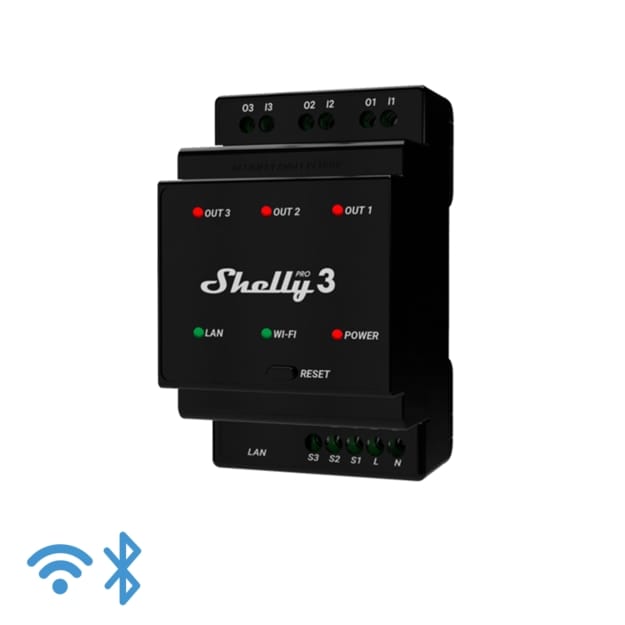

Shelly Pro 3
66.00 JOD
Professional 3-channel DIN rail smart switch with dry contacts
- LAN, Wi-Fi, and Bluetooth connection
- 3 outputs, 16A each. Total device maximum of 48A
- Dry contacts
- Overpower and overvoltage protection of the load.
- 3-phase control
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Why Shelly Pro 3?
The best solution for new home buildings and business facilities

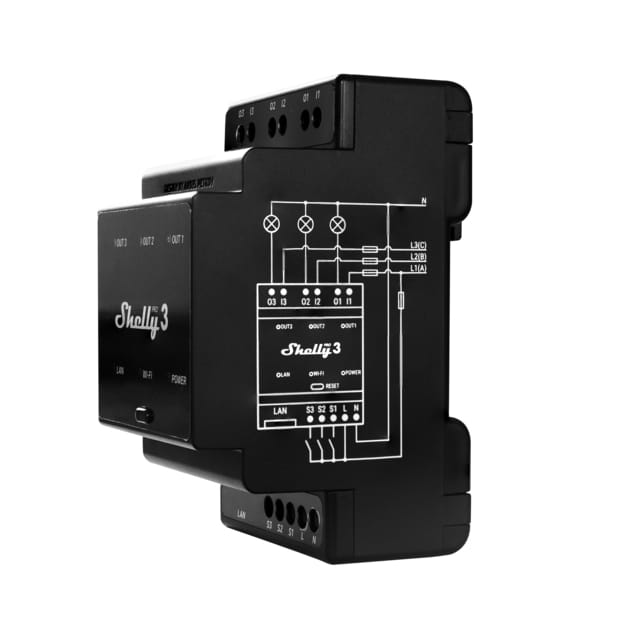

Shelly Pro 3 is a three-phase, 3-channel relay supporting up to 48A for professional lights and appliance automation for residential or commercial use. It is equipped with potential-free outputs (dry contacts) offering high flexibility in voltage support and applications. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. Additionally, Shelly Pro 3 has scripting functionalities for custom automation scenes based on external data or various occurrences.
Shelly Pro series

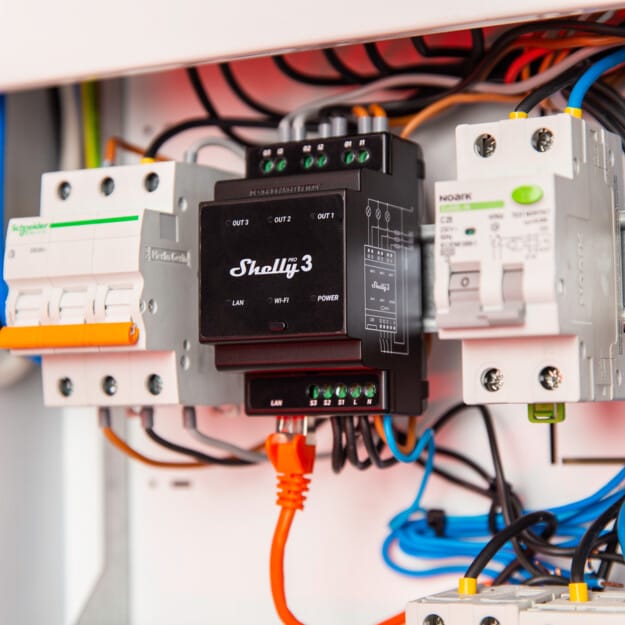

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Functionalities
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.
3 channels, 16 A each
Shelly Pro 3 has a total device output of 48A.
Dry Contacts
Use a wide range of output voltage levels. Supports low voltages.
Low and high-voltage support
Use it to control a wide range of AC devices and appliances.
Enhanced safety & security
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
Scripting capabilities
Shelly Pro 3 fully supports mjS scripting, allowing you to create further features and functionalities.
Endless Use Applications
Use Cases
Lights automation of the common spaces
Reduce unnecessary monthly costs with Shelly smart lighting solutions. Shelly Pro 3 can control three separate light circuits and give you full control over common spaces such as halls, garages, and storage rooms, which usually have their lights constantly switched on. Now you can make them energy efficient using Shelly Pro 3’s built-in scheduling and scripting functionalities. To fully automate your premises, add Shelly Motion2 to switch on the lights automatically when someone enters, and its pre-set smart timer will switch the lights off once the premises are empty.
Use Cases
Common area temperature control
In guest rooms, reception areas, restaurants, or meeting rooms, keeping the temperature at a comfortable level is a key contributor to the comfort of both guests and employees. However, it is hard to maintain an optimal temperature without any energy going to waste. The cooling/heating systems in the hotels should follow the dynamic changes in the temperatures during the different seasons. Use Shelly Pro 3 to control the motorized valves in your water distribution box and control heating, cooling, or any other motorized valve in your facility. Smart schedules combined with temperature & humidity sensors and precise weather data will provide dynamic control of the heating system for an optimal indoor climate.
Pro Series Features
HTTP/HTTPS webhooks
Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.
Smart actions that follow the Sunrise/Sunset
Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.
Automation with weekly scheduling
Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.
Scripting for custom automation
Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.
Enhanced Safety Features
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Wave Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
Full compatibility
Full compatibility
smart home control, perfected
shelly smart control
Get the app on:
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Get the app on:
specifications
| Physical | |
|---|---|
| Size (HxWxD): | 96x53x59 ±0.5 mm / 3.78×2.01×2.32 ±0.02 in |
| Weight: | 0.150 kg |
| Mounting: | DIN rail |
| Screw terminals max torque: | 0.4 Nm / 4.43 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Shell material: | Plastic |
| Color: | Black |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply voltage AC: | 110 – 240 V |
| Power supply voltage DC: | N/A |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30 V |
| Max switching current AC: | 16 A per channel, 48 A total |
| Max switching current DC: | 16 A per channel, 48 A total |
| Sensors, meters | |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 24010- 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
