Shelly Pro 2PM
78.00 JOD
Professional 2-channel DIN rail smart switch with power metering & cover (roller shutter) control
- LAN, Wi-Fi, and Bluetooth connection
- 2 outputs, 16A each. Total device maximum of 25A
- Power metering on each channel and free storage data
- Cover (roller) control – roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
- 1-phase control
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Why Shelly Pro 2PM?
The best solution for new home buildings and business facilities
Shelly Pro 2PM is a one-phase, 2-channel relay, supporting up to 16A per channel with a total device capacity of 25A. Shelly Pro 2PM is equipped with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. It supports two-directional motor control, which makes it perfect for the automation of roller shutters, curtains, awnings, gates, and many more! Use scripting functionalities to set custom automation scenes based on various occurrences, weather forecasts, wind forecasts, etc.
Shelly Pro series

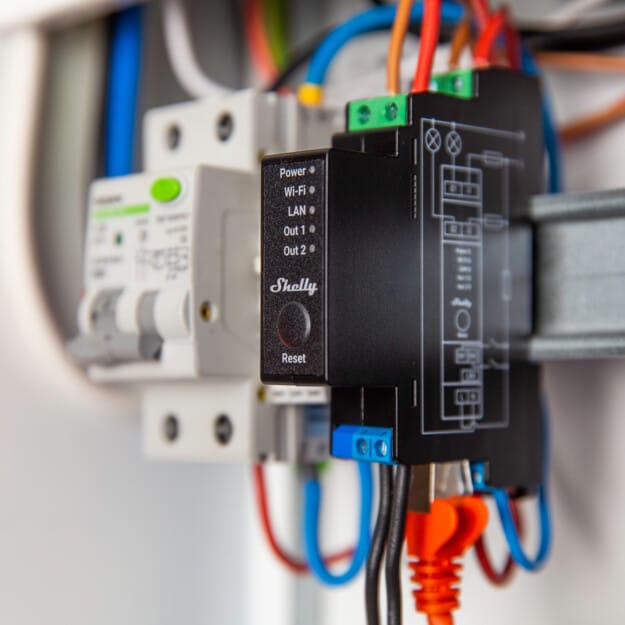

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Functionalities
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.
2 outputs, 16 A each
Shelly Pro 2PM has a total device output of 25A.
Precise power metering
Shelly Pro 2PM provides precise monitoring of the power consumption.
Cover (roller) control
Control two-directional AC motors and set your desired position.
Enhanced safety & security
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
Scripting capabilities
Set custom scenes by combining Shelly Pro 2PM with your other Shelly devices.
Endless Use Applications
Use Cases
An awning that follows the weather
The outdoor motorized awnings offer pleasant shade for the establishment’s visitors on sunny days. However, a strong, unexcepted wind can damage them beyond repair. By combining it with a wind sensor or simply by using a script to receive data for the weather forecast, Shelly Pro 2PM can automatically close the outside awnings to protect them from the wind. Additionally, if the weather forecast predicts rain in the afternoon hours, Shelly will open the awnings again to protect the outside seated customers.
Use Cases
Automated blinds for privacy control
Motorized blinds and curtains will not only encourage the use of more natural light but will also allow the guests of your hotel establishment control of their privacy by controlling motorized blinds or curtains individually. They can open or close the blinds or set the angle of the blinds according to their own needs and preferences.
Use Cases
Remote control of the parking gates
Security services are costly to maintain. Shelly allows the automation of access control for your office or home, giving you remote control over your parking barrier or gate door. Use smart scheduling to set Shelly Pro 2PM to keep the barrier open between 6:00 PM and 7:00 PM when people are leaving the office to ease the traffic.
Use Cases
Smart conference room
Automate the conference rooms so that they are fully ready for your business meetings. Set Shelly Motion2 to activate the “Meeting scene” once you enter the room. The shades will close, the lights will dim to the desired brightness, the projection screen will open, and the projector will turn on. The conference room is instantly ready for your presentation!
Recommended
Pro Line Capabilities
Connectivity
Wi-Fi
Working on 2.4 GHz Wi-Fi network, supporting Access Point (AP) and Client Mode (CM) options
Bluetooth
Add devices fast and easy via Bluetooth connection, using the Shelly Cloud App
LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup, when needed.
Safety
Temperature protection
Overpower protection (PM devices)
Overvoltage load protection (PM devices)
Flame Retardant (V-0)
Features
HTTP/HTTPS webhooks
Sunrise/Sunset actions with offsets
Weekly Scheduling
Custom scripts(mJs)
Grouping Scenes
Features
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Wave Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
Pro Series Features
HTTP/HTTPS webhooks
Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.
Smart actions that follow the Sunrise/Sunset
Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.
Automation with weekly scheduling
Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.
Scripting for custom automation
Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.
Full compatibility
Full compatibility
specifications
| Physical | |
|---|---|
| Size (HxWxD): | 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in |
| Weight: | |
| Mounting: | DIN rail |
| Screw terminals max torque: | 0.4 Nm / 3.54 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors) |
| Shell material: | Plastic |
| Color: | Black |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply voltage AC: | 110 – 240 V |
| Power supply voltage DC: | N/A |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 16 A per channel, 25 A total |
| Max switching current DC: | N/A |
| Sensors, meters | |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
