Shelly Pro 2
63.00 JOD
Professional 2-channel DIN rail smart switch with dry contacts
Suitable for home and facility automation with remote control. DIN rail mountable inside a breaker box. Enhanced safety features and compatible with most used home automation platforms
- LAN, Wi-Fi, and Bluetooth connection
- 2 outputs, 16A each. Total device maximum of 25A
- Dry contacts
- DIN rail mountable
- 2- phase control
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Why Shelly Pro 2?
The best solution for new home buildings and business facilities
Shelly Pro 2 is a two-phase, 2-channel relay supporting up to 25 A for professional lights and appliance automation for residential or commercial use. It is equipped with potential-free outputs (dry contacts) offering high flexibility in voltage support and applications. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. Additionally, Shelly Pro 2 has scripting functionalities for custom automation scenes based on external data or various occurrences.
Overview
Shelly Pro series

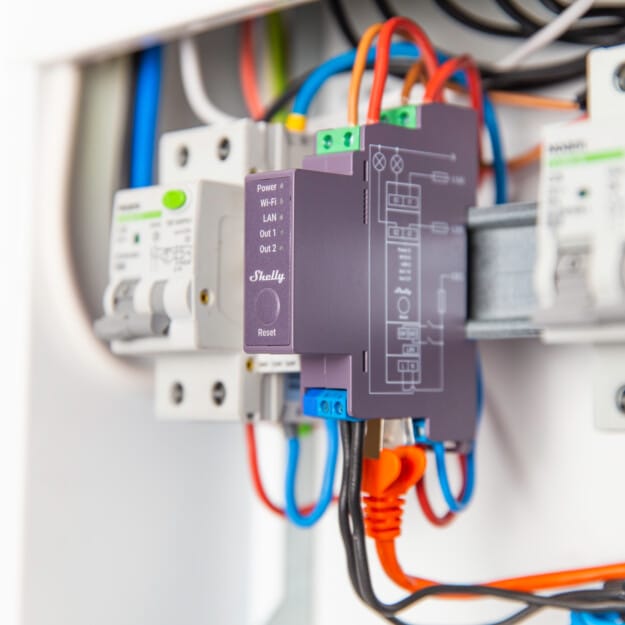

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Functionalities
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.
2 outputs, 16 A each
It has a total device output of 25A.
Dry contacts
Use a wide range of output voltage levels. Supports low voltages.
Use it to control a wide range of AC devices and appliances.
Use it to control a wide range of AC devices and appliances.
Enhanced safety & security
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
Scripting capabilities
Shelly Pro 2 fully supports mjS scripting, allowing you to create further features and functionalities.
Endless Use Applications
Use Cases
Control lights on 2 phases
Automate the lights and optimize their energy consumption through smart schedules, timers, and extended scripting functionalities. Shelly Pro 2 allows you to control the lights on 2 phases and control them separately by setting custom schedules and smart timers. Set the lights on the operational floors to switch off completely after the working day is over and switch back on only where it is necessary at 7.00 in the morning. This way, you will not have to worry about any forgotten lights or efficiency.
Use Cases
Automate your valves
Use Shelly Pro 2 to control the motorized valves in your water distribution box and control heating, cooling, or any other motorized valve in your facility. This way, you can protect your premises from flooding and make your spending more efficient by using the Shelly device’s built-in scheduling and scripting functionalities. Smart schedules combined with temperature & humidity sensors and precise weather data will provide dynamic control of the heating system for an optimal indoor climate.
Use Cases
Sockets automation for efficient energy usage
Make sure that no energy goes to waste by automating the sockets’ power supply with Shelly Pro 2 and use the smart scheduling function to cut off the power to all heavy consuming electrical appliances between 7:00 PM and 7:00 AM during the weekdays and over the weekend. That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.
Pro Line Capabilities
Connectivity
Wi-Fi
Working on 2.4 GHz Wi-Fi network, supporting Access Point (AP) and Client Mode (CM) options
Bluetooth
Add devices fast and easy via Bluetooth connection, using the Shelly Cloud App
LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup, when needed.
Safety
Temperature protection
Overpower protection (PM devices)
Overvoltage load protection (PM devices)
Flame Retardant (V-0)
Features
HTTP/HTTPS webhooks
Sunrise/Sunset actions with offsets
Weekly Scheduling
Custom scripts(mJs)
Grouping Scenes
Features
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Wave Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
Full compatibility
Full compatibility
smart home control, perfected
shelly smart control
Get the app on:
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Get the app on:
specifications
| Physical | |
|---|---|
| Size (HxWxD): | 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in |
| Weight: | 76 g / 2.68 oz |
| Mounting: | DIN rail |
| Screw terminals max torque: | 0.4 Nm / 3.54 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors) |
| Shell material: | Plastic |
| Color: | Gray |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply voltage AC: | 110 – 240 V |
| Power supply voltage DC: | N/A |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 16 A per channel, 25 A total |
| Max switching current DC: | N/A |
| Sensors, meters | |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
