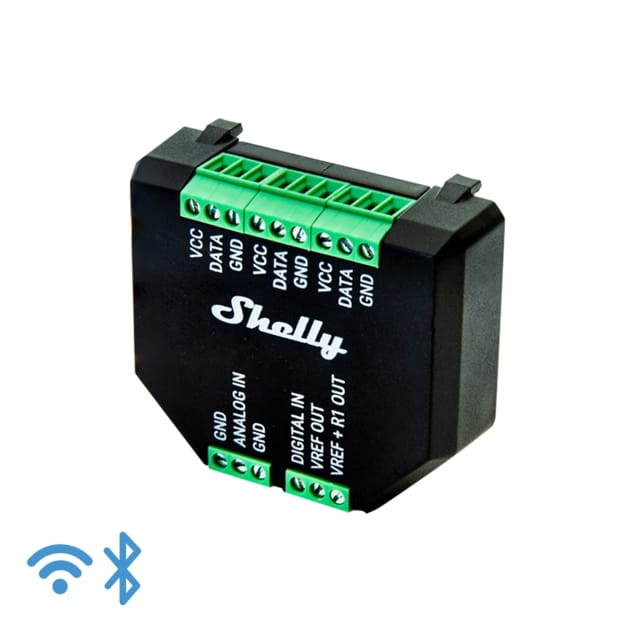

Shelly Plus AddOn
15.00 JOD – 21.00 JOD
Add-on for Shelly Plus devices
- Can be used with up to five DS18B20 sensors or one DHT22 sensor
- Has an analog and a digital input
- DS18B20 – Temperature sensor (up to 5); please choose the product variant with or without (default variant ships without it)
- DHT22 sensor- if you want to monitor temperature and humidity
Why Shelly Plus Add-on?
Measure and control with precision
Shelly Plus Add-on is a galvanically isolated sensor interface for all Shelly Plus relays. Use it to measure temperature and humidity using its 1-Wire terminals, or connect various analog and digital sensors for complex automation and higher efficiency.
Endless use applications
Motion-controlled lights
Shelly Plus Add-on can also be connected to a PIR sensor to light up rooms that you occasionally use around the house. This way, when you enter the room, the light will come on for as long as you need it to.
Perfect Match
Shelly i4 Gen3 is an ideal companion for the Shelly Wall Switch for Smart Relays, featuring a 4-button design. Each button can trigger up to 4 different actions, allowing one switch to activate and execute up to 16 scenes.
With its compact size and simple wiring, the Shelly Wall Switch for Smart Relays easily fits into any existing switch console. No need to expand the wall space or modify the wiring!
Recommended
An awning that follows the weather
Outdoor motorized awnings offer pleasant shade for your guests on sunny days. However, a strong, unexcepted wind can damage them beyond repair. By combining it with a wind sensor connected to the Shelly Plus AddOn, Shelly Plus 2PM can automatically close the outside awning to protect them from the wind. Additionally, Shelly Plus Add-on with a rain sensor can trigger Shelly Plus 2PM to open the awning just in time to protect your guests.
Recommended
Control your lights based on luminosity
Together with an LDR (photoresistor), Shelly Plus Add-on can trigger Shelly Plus 2PM to open the blinds when the room is too dark and it’s still daytime. Additionally, when luminosity is low, Shelly Plus Add-on can trigger Shelly Plus 1 to turn on the lights at just the right time.
Recommended
Always informed
Using Shelly Plus Add-on and two DS18B20 sensors, you can easily measure the precise temperature inside your aquarium, as well as the room temperature. Based on this data, you can maintain a comfortable and healthy environment for your pets. Additionally, you can connect a liquid level sensor to the Add-on, and always be sure that the water level is at its optimal level.
Recommended
Garage door position
You can connect a reed-switch sensor to Shelly Plus Addon’s digital sensor and follow the state of your garage door. This way, you will always know whether it is open or closed when you’re away and take appropriate action.
Recommended
smart home control, perfected
shelly smart control
Get the app on:
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Get the app on:
specifications
| Physical | |
|---|---|
| Size (HxWxD): | 37x42x15 ±0.5 mm / 1.46 x 1.65 x 0.59 ±0.02 in |
| Weigh: | 105 g / 3.70 oz |
| Shell material: | Plastic |
| Screw terminals max torque: | 0.1 Nm / 0.89 lbIn |
| Conductor cross section: | max. 1 mm² / 17 AWG |
| Conductor stripped length: | 4.5 mm / 0.18 in |
| Color: | Black |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply voltage AC: | N/A |
| Power supply voltage DC: | 3.3 V (from Shelly plus device) |
| Power consumption: | < 0.5 W (without sensors) |
| Output circuits ratings | |
| VCC max. current: | 10 mA |
| VREF OUT max. current: | 1 mA |
| VREF+R1 OUT resistor: | 10 kΩ |
| Shelly Plus device firmware capabilities | |
| Shelly Plus Addon supporting devices: | Shelly Plus devices: |
| -Shelly Plus 1/1PM | |
| -Shelly Plus 2PM | |
| -Shelly Plus i4/i4DC | |
| -Shelly Plus 0-10V Dimmer PM | |
| -Shelly Plus RGBW PM | |
| Shelly Gen3 devices: | |
| -Shelly 1/1PM Gen3 | |
| -Shelly i4/i4DC Gen3 | |
| -Shelly Dimmer 0/1-10V PM Gen3 | |
| Temperature reading: | Depends on the DS18B20 or DHT22 sensors |
| Humidity reading: | Depends on the DHT22 sensor |
| Digital input: | -15 V to 0.5 V (True) / 2.5 V to 15 V (False)* |
| Analog input range: | 0 to 100% |
| Analog input report threshold: | 1%** |
| Voltmeter range: | 0 to 10 V |
| Voltmeter report threshold: | 0.1 V** |
| Analog input / Voltmeter accuracy: | Better than ±5% |
