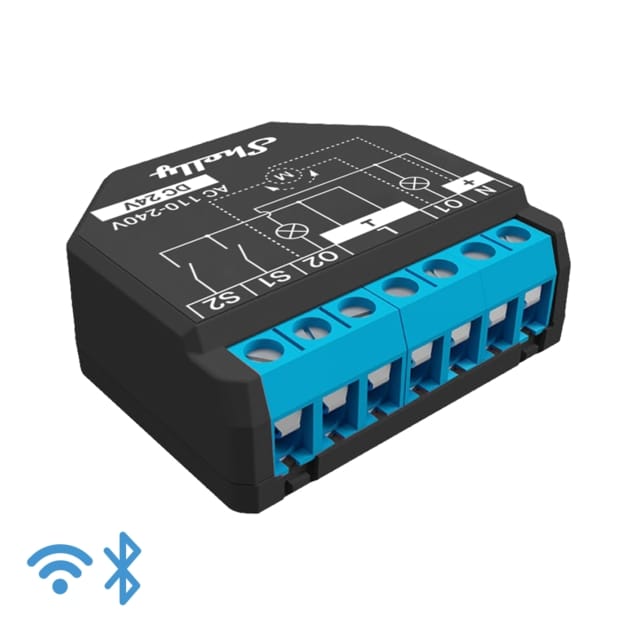

Shelly Plus 2PM
25.00 JOD
Wi-Fi-operated smart switch, 2 channels 16A total current (18A peak)
- 2 channels on the same phase
- Power metering on each channel
- Cover (roller) control- automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
- Scripting, schedules, and webhooks

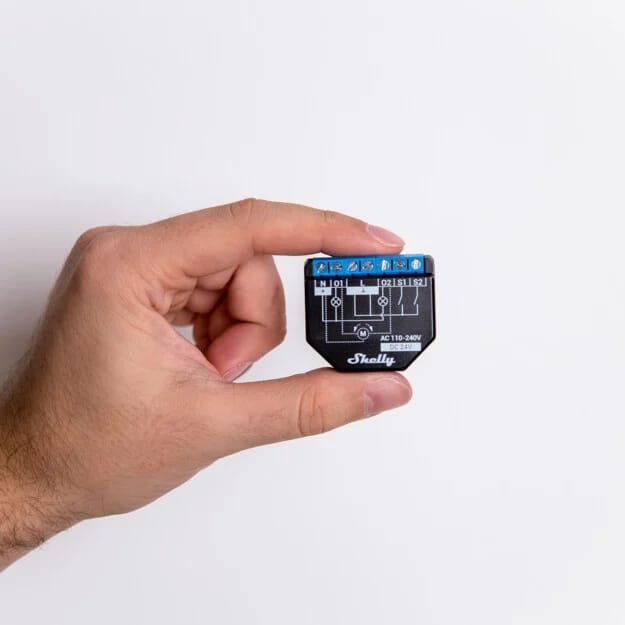

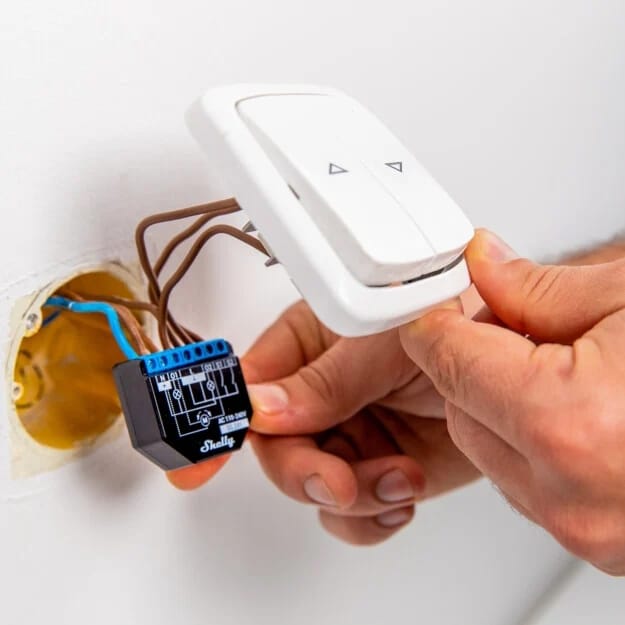

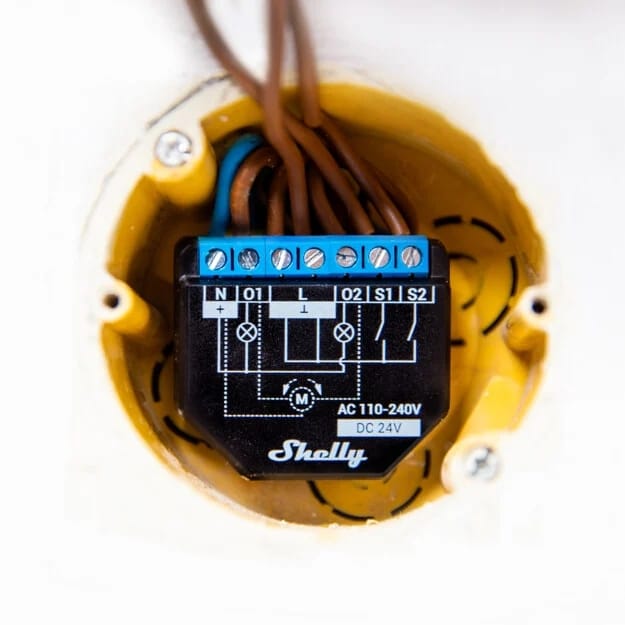

- Designed to fit in most standard electrical boxes and switches
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Why Shelly Plus 2PM?
One device - Different possibilities
From automatization of the lights to electrical appliances control, Shelly Plus 1PM provides precise power metering and free cloud data storage. Small enough to fit behind every wall switch or wall socket, Shelly 1PM is retrofit and can be installed in less than 10 minutes.
2 Channel Smart Relay
Automate lights and monitor their real-time power consumption
Cover (Roller) Control
Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors
Functionalities
Wi-Fi operated
Connect Shelly Plus 2PM to your Wi-Fi network. No HUB required!
Bluetooth
Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
Power monitoring
Two integrated precise power meters allow you to monitor the consumption for each channel.
Cover (roller) control
Control two-directional AC motors and set your desired position.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly Plus 2PM with your other Shelly devices.
Endless use applications
Control two lights with 1 device
Shelly Plus 2PM allows you to control two different circuits and monitor their consumption separately. This way, you can control two different lights on the same phase with only one device, saving additional energy and reducing your wiring footprint. Use the manual switch, app, preferred home automation system, or your voice!
use cases
Curtains that follow your Schedule
Shelly Plus 2PM supports cover control, which makes it perfect for automating curtains, roller shutters, garage doors, awnings, gates, and any other two-directional motor in your home. Use the “Schedules” function to create the perfect morning/evening routines by setting Shelly Plus 2PM to open/close the curtains in your home at pre-set hours every day. Additionally, precise position control allows you to set the desired intermediate position of your curtains in percent (%).
Track your power consumption and save on energy
You can now monitor and analyze the energy spent by your automated appliances and manage your consumption. Shelly Plus 2PM has two integrated precise power meters that allow you to monitor the consumption for each channel separately. Free stored consumption data helps you forecast your spending, and allows any homeowner to cut down their electricity costs.
Use Cases
Combine Shelly Plus 2PM with other devices
Shelly Plus 2PM, like all Shelly devices, can be grouped with other devices and be triggered to perform actions by pre-set conditions. Nowadays, many people prefer working from their home office. Install Shelly Door/Window 2 sensor on your home office door and set Shelly Plus 2PM to open the roller shutters as soon as you enter the room in the morning, letting the natural light in. Once the working day is over, Shelly Plus 2PM will shut the roller shutters and keep them that way until you are ready for the next working day.
Use Cases
Scripting Functionalities
Shelly Plus 2PM features scripting functionalities – use them to customize and enhance device functionality based on your specific needs or automation project.
Example: Together with a wind sensor or simply by using a script, Shelly Plus 2PM can close your awning in case the wind is strong to prevent it from breaking.
Shelly Plus line features
HTTP/HTTPS webhooks
Shelly Plus devices can notify or control another compatible equipment or 3rd party automation system.
Scripting for custom automation
Get enhanced functionalities and additional processes settings for a specific integration or function you have in mind.
Weekly scheduling automation
Create a home automation that follows your schedule! Shelly Plus allows you to quickly set actions based on your daily or weekly schedule.
Smart actions for dynamic control
Set Shelly Plus devices to switch on/off the power, based on the Sunset/Sunrise hour and enjoy dynamic control depending on the season.
Full compatibility
Full compatibility
smart home control, perfected
shelly smart control
Get the app on:
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Get the app on:
specifications
| Physical | |
|---|---|
| Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
| Weight: | |
| Mounting: | Wall console |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Black |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 – 240 VAC / 24 VDC ±10% |
| Power consumption: | < 1.4 W |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30 V |
| Max switching current AC: | 10 A (per channel), 16 A (total), 18 A (total peak) |
| Max switching current DC: | 10 A |
| Sensors, meters | |
| Temperature sensor: | Yes |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
