بشيلي كيوبينو ويف برو 1PM

71.00 JOD

5

سنوات كفالة مصنعية

متوفر

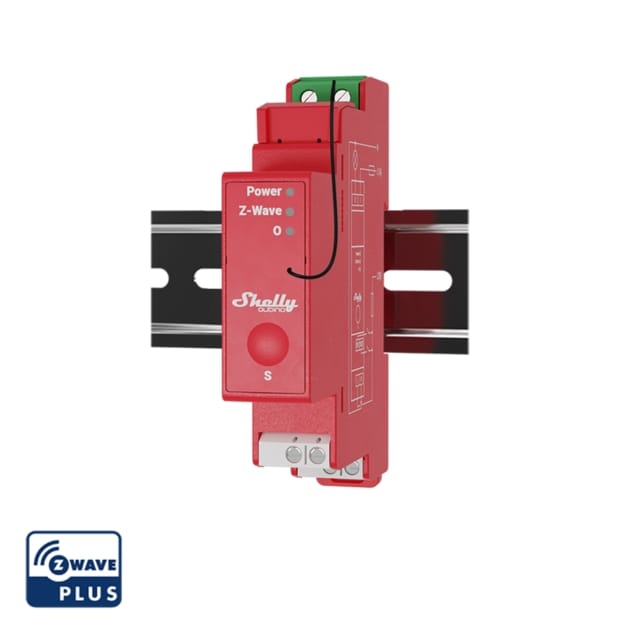

مفتاح ذكي احترافي أحادي القناة مزود بسكة DIN Z-Wave® مع قياس الطاقة مناسب لأتمتة المنزل والمرافق مع جهاز تحكم عن بعد. يمكن تركيبه على سكة DIN داخل صندوق قاطع الدائرة. ميزات أمان محسّنة.

  1. مخرج واحد، 16 أمبير
  2. قياس الطاقة
  3. قابل للتركيب على سكة DIN
  4. استهلاك طاقة منخفض للغاية: < 0.3 وات
  5. نطاق تردد Z-Wave: 868.4 ميجا هرتز (دول CEPT)
  6. أحدث التقنيات: سلسلة Z-Wave 800
  7. إعداد تلقائي مع SmartStart
  8. أمان 2 معتمد لأعلى مستوى من الأمان
  9. تحديثات البرامج الثابتة اللاسلكية
  10. يعمل مع بوابات معتمدة من Z-Wave وأكثر من 4000 جهاز Z-Wave

*لا يتم تضمين البوابة (المحور الذكي). يلزم وجود بوابة (محور ذكي) لتعريف الجهاز.

​​

Why Wave Pro 1PM?

The best solution for new home buildings and business facilities​​

Wave Pro 1PM is a one-phase, 1-channel relay supporting up to 16 A. Equipped with an integrated power meter, Wave Pro 1PM allows you to measure the power consumption of all automated lights or heavier appliances. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs.

introduction to z-wave

Shelly Qubino works onZ-Wave

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.

*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.

For more information, please visit the official Z-wave website: www.z-wave.com

introduction to Shelly Qubino

Works with any Z-Wave gateway

Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways. ​

Functionalities

Z-Wave operated

Include Wave Pro 1PM to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.​

1 channel, 16 A​​

Wave Pro 1PM has a total device output of 16 A. ​

Power monitoring​​

Wave Pro 1PM provides precise monitoring of the power consumption. ​

Wide range of voltage support​​

Use it to control a wide range of AC devices and appliances. ​

Associations

Establish direct communication between devices in your Z-Wave local network and set actions with no hub present! ​

The highest level of security​

Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.

Use Cases

Appliances control & monitoring ​

Predict monthly costs and plan your spending better! Automate the electrical appliances in the restaurant and track their energy consumption wherever you are. Receive a notification in case an appliance is forgotten and left working outside of restaurant working hours, reminding you to switch it off to avoid electricity consumption waste. Additionally, you can set smart schedules and cut off the power to all unused electrical appliances during the night and turn them back on right before the kitchen opens.​

Avoid unnecessary energy usage by controlling the office equipment power supply​

Stop unnecessary energy usage in the office over the weekend! Computers and monitors that somebody forgot to turn off, plugged chargers, lit up desk lights, printers and copy machines left switched on, etc. – all these appliances are consuming energy when nobody is in the office, unnecessarily burdening the monthly bills. Avoid that by setting Wave Pro 1PM to cut off the power supply of the office appliances over the weekend to save on energy. Use smart scheduling functions to restore the power supply before the employees arrive at the office. ​

Preventative management ​​

When an electrical appliance is damaged, it doesn’t simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Wave Pro 1PM, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.​

Wave Pro Series

Enhanced with overheating, overpower, and overvoltage* load protection, Wave Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

*Overpower and overvoltage features are available only for power metering-enabled devices.

Overheating protection

In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.

Overpower protection

Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.

*Feature is available only for power metering-enabled devices

Overvoltage protection

Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.

*Feature is available only for power metering-enabled devices

Flame Retardant (V-0)

All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.

المواصفات

Power supply110-240 V AC, 50/60 Hz
Power consumption< 0.3W
Power measurement (W)Yes
Max. switching voltage AC240 V
Max. switching current AC16 A
Max. switching voltage DCN/A
Max. switching current DCN/A
Overheating protectionYes
Overload protectionYes
Overvoltage protectionYes
DistanceUp to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave repeaterYes
CPUZ-Wave S800
Z-Wave frequency bands868,4 MHz
Maximum radio frequency power transmitted in frequency bend(s)< 25 mW
Size (H x W x D)94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in
Weight61 g / 2.15 oz.
MountingDIN rail
Screw terminals max. Torque0.4 Nm / 3.54 lbin
Conductor cross section0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (white connectors)
Conductor stripped length6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
Shell materialPlastic
ColorRed
Ambient temperature-20°C to 40°C / -5°F to 105°F
Humidity30 % to 70 % RH
Max. Altitude2000 m / 6562 ft.
