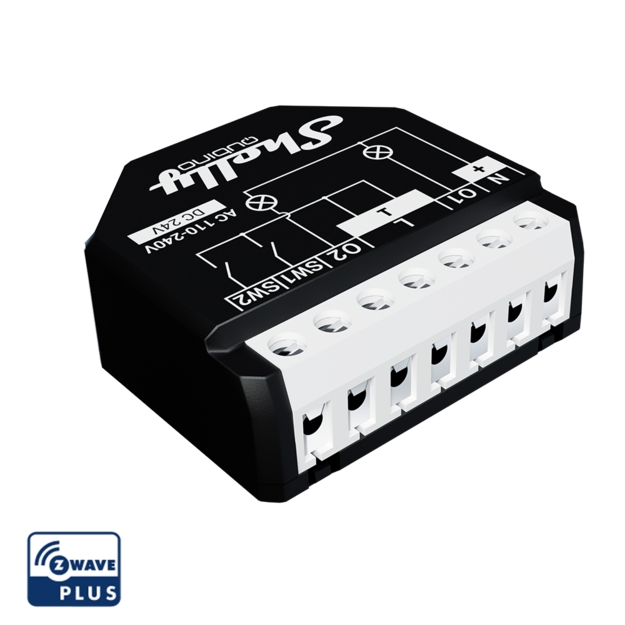

شيلي كوبينو ويف 2PM
34.00 JOD
مفتاح ذكي Z-Wave™، قناتان، تيار إجمالي 16 أمبير (18 أمبير ذروة)، مع قياس الطاقة تحكم عن بُعد في جهازين كهربائيين مستقلين (مثل الأضواء) وراقب استهلاكهما للطاقة بشكل منفصل وإجمالي.
- قناتان (2x 10 أمبير، 16 أمبير إجمالي)
- قياس الطاقة على كل قناة وإجمالي
- استهلاك طاقة منخفض للغاية: 0.3 وات.
- نطاق تردد Z-Wave: 868.4 ميجا هرتز (دول CEPT)
- أحدث التقنيات: سلسلة Z-Wave 800
- إعداد تلقائي مع SmartStart
- أمان 2 معتمد لأعلى مستوى من الأمان
- يدعم تحديثات البرامج الثابتة عبر الهواء
- تركيب بسيط في معظم الصناديق والمفاتيح الكهربائية القياسية
- يعمل مع بوابات Z-Wave المعتمدة وأكثر من 4000 جهاز Z-Wave
*لا يتم تضمين بوابة (محور ذكي). يلزم وجود بوابة (محور ذكي) لتعريف الجهاز.
introduction to z-wave
Shelly Qubino works onZ-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway
Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Connect Wave 2PM to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
Associations
Establish direct communication between devices in your Z-Wave local network and set actions with no gateway present!
Power Monitoring
Wave 2PM provides precise power consumption monitoring on each channel separately and in total.
Wide range of voltage support
Use it to control a wide range of devices and appliances.
Smart Schedules
Create personalized schedules aligned with your daily routine or synchronize with sunrise/sunset to manage your lighting (gateway required).
Smart Scenes
Set custom scenes by combining Wave 2PM with any other Z-Wave devices (gateway required).
Use Cases
Control two lights with a single device
Wave 2PM allows you to remotely control two lights or other electrical appliances and monitor their energy usage. Use the manual switch, smart home app, home automation system or voice control. Easy, convenient, and energy-efficient!
Track your energy usage and save money
With Wave 2PM you can precisely measure power consumption for each channel separately (W) and together (W, kWh). Keep an eye on real-time consumption for the connected devices and adjust usage patterns to cut utility costs with ease!
Create schedules that follow your daily routine
Enhance the energy efficiency of your home and simplify your daily life. Set your lights to turn on gradually every morning at 7 am or at sunset, if the house is occupied. This way, your home can automatically follow your daily routine and create an atmosphere that suits you at a particular moment of the day.
specifications
| Power supply | 110-240 V AC / 24 V DC +/-10% |
|---|---|
| Power consumption | < 0.3 W |
| Power measurement (W) | Yes |
| Max switching voltage AC | 240 V |
| Max switching current AC | 10 A per channel, 16 A total, 18 A total peak |
| Max switching voltage DC | 30 V |
| Max switching current DC | 10 A |
| Overheating protection | Yes |
| Overload protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave™ repeater: | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave™ frequency band: | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
| Mounting | Wall console |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
