شيلي كوبينو ويف برو 3
82.00 JOD
مفتاح ذكي احترافي ثلاثي القنوات من نوع Z-Wave® مزود بوصلات جافة مناسب لأتمتة المنزل والمرافق مع جهاز تحكم عن بعد. يمكن تركيبه على وصلة DIN داخل صندوق قاطع الدائرة. ميزات أمان محسّنة.
- 3 مخرجات، 16 أمبير لكل مخرج. الحد الأقصى لإجمالي الجهاز 48 أمبير.
- يمكن تركيبه على وصلة DIN
- وصلات جافة
- استهلاك طاقة منخفض للغاية: < 0.3 وات
- نطاق تردد Z-Wave: 868.4 ميجا هرتز (دول CEPT)
- أحدث التقنيات: سلسلة Z-Wave 800
- إعداد تلقائي مع SmartStart
- أمان 2 معتمد لأعلى مستوى من الأمان
- تحديثات البرامج الثابتة عبر الهواء
- يعمل مع بوابات معتمدة من Z-Wave وأكثر من 4000 جهاز Z-Wave
*لا يتم تضمين بوابة (محور ذكي). يلزم وجود بوابة (محور ذكي) لتكوين الجهاز
Why Wave Pro 3?
The best solution for new home buildings and business facilities

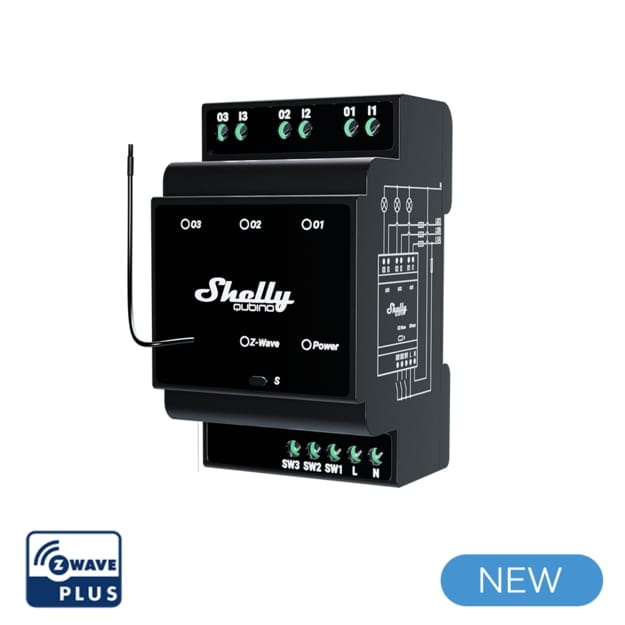

Wave Pro 3 is a 3-channel relay supporting up to 48 A for professional lights and appliance automation for residential or commercial use. It is equipped with potential-free outputs (dry contacts), offering high flexibility in voltage support and applications. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs.
introduction to z-wave
Shelly Qubino works onZ-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
introduction to Shelly Qubino
Works with any Z-Wave gateway

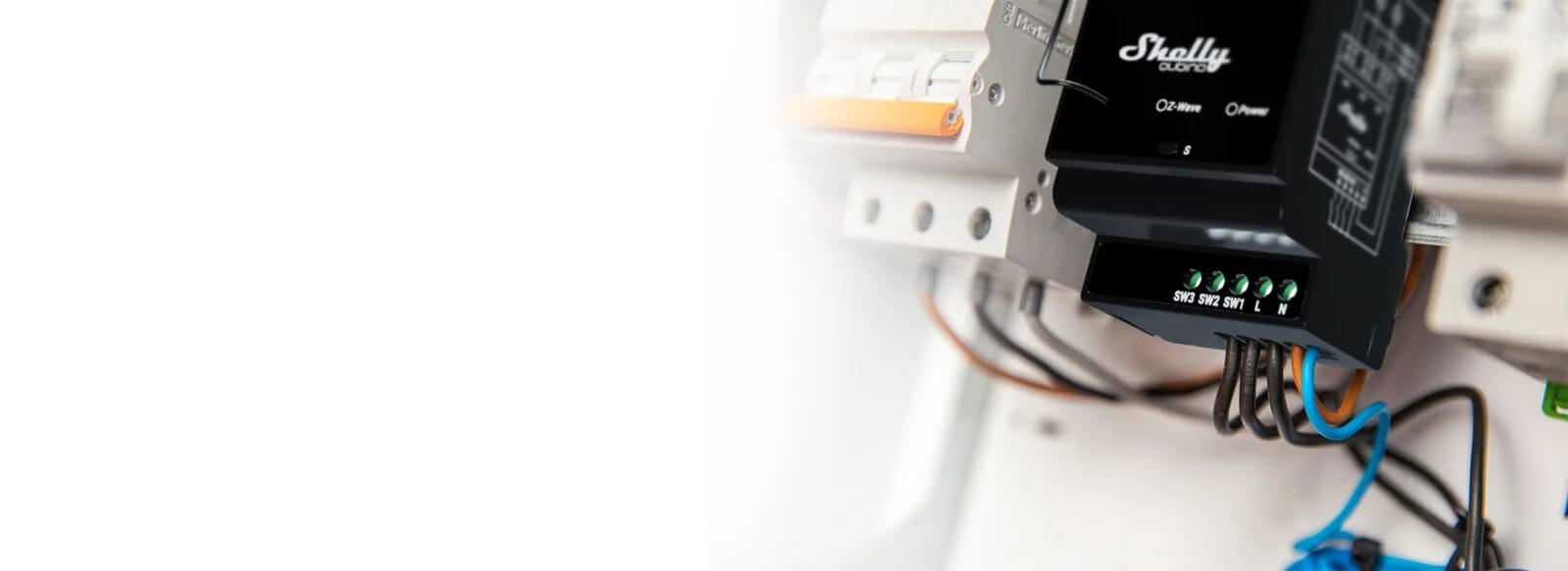

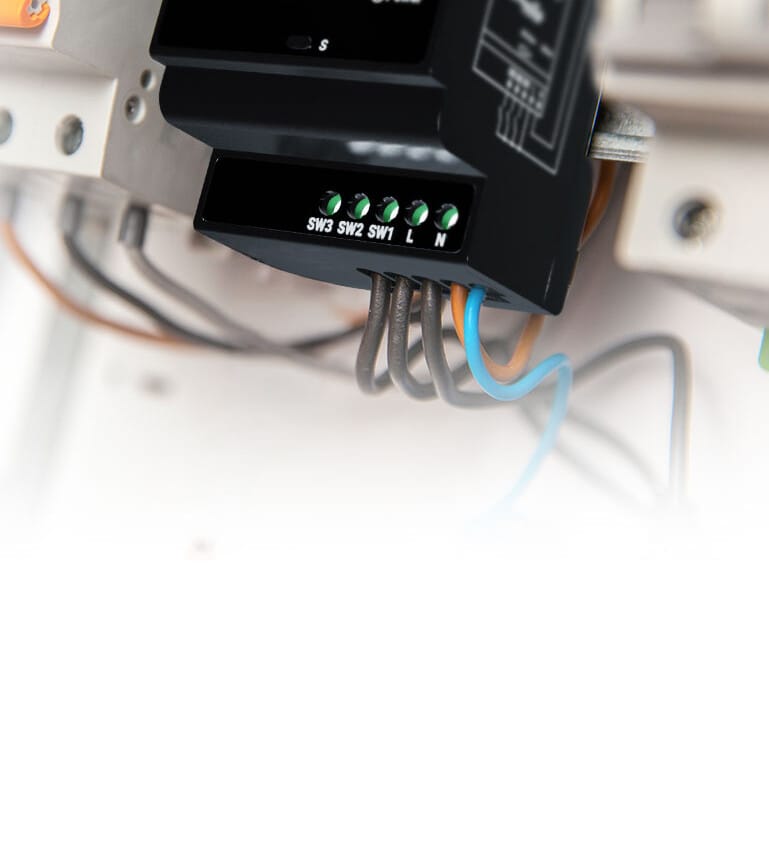

Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Wave Pro Series
Enhanced with overheating, overpower, and overvoltage* load protection, Wave Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
*Overpower and overvoltage features are available only for power metering-enabled devices.
Functionalities
Z-Wave operated
Include Wave Pro Shutter to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
3 channels, 16 A each
Wave Pro 3 has a total device output of 48 A.
Dry contacts
Use a wide range of output voltage levels. Supports low voltages.
DIN-mountable
Intended to be installed inside the breaker box and designed to meet the global DIN rail standardization.
Associations
Establish direct communication between devices in your Z-Wave local network and set custom actions with no hub present!
The highest level of security
Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.
Use Cases
Endless use applications
Dynamic lights control for improved efficiency
Automate the office lights and optimize their energy consumption through smart schedules, timers, scenarios, etc. Wave Pro 3 allows you to control the lights and manage them separately by setting custom schedules and smart timers. Set the lights on the operational floors to switch off completely after the working day is over and switch back on only where it is necessary at 7:00 in the morning. This way, you will not have to worry about any forgotten lights or efficiency.
Use Cases
Optimal indoor climate
Ensuring a comfortable temperature in guest rooms, reception areas, restaurants, and meeting rooms is crucial for the well-being of both guests and staff. However, achieving this balance without unnecessary energy consumption presents a challenge. Hotel cooling and heating systems must adapt to fluctuating temperatures across seasons. By integrating Wave Pro 3 for motorized valve control within water distribution systems, hotels can efficiently manage heating, cooling, and other valve operations.
Use Cases
Optimize your energy usage
Stop unnecessary energy usage in the office over the weekend! Ensure maximum energy efficiency by automating socket power delivery with Wave Pro 3. Implement smart scheduling to deactivate power to non-essential, high-consumption electrical appliances in office spaces from 7:00 PM to 7:00 AM on weekdays and throughout weekends. That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Wave Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
المواصفات
| Power supply | 110 – 240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0.3W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A per channel, 48 A total |
| Max. switching voltage DC | 30 V |
| Max. switching current DC | 16 A per channel, 48 A total |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave® repeater: | Yes |
| CPU | Z-Wave® S800 |
| Z-Wave® frequency bands | 868.4 MHZ |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 96x53x59 ± 0.5 mm / 3.78×2.01×2.32 ± 0.02 in |
| Weight | 150 g / 5.29 oz |
| Mounting | DIN rail |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm / 20 to 14 AWG (green connector) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connector) |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
