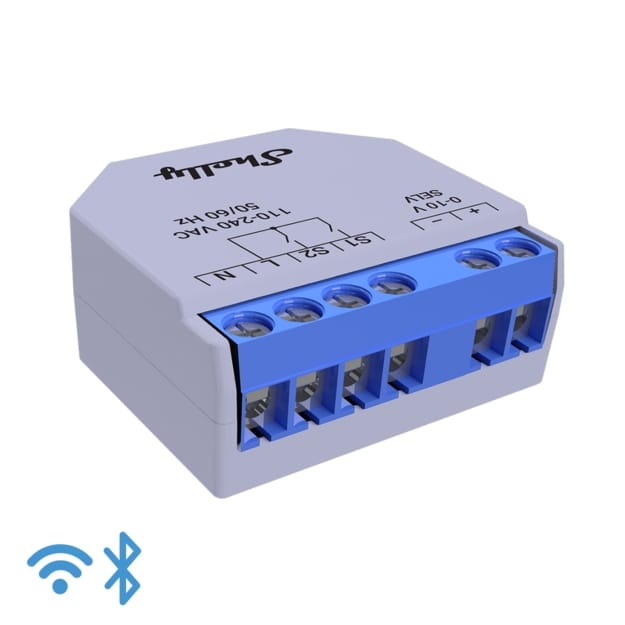

شيلي بلس مفتاح تعتيم 0-10 فولت
16.00 JOD
وحدة تحكم تعتيم ذكية 0-10 فولت تيار مستمر مصممة لإدارة برامج تشغيل التعتيم 0-10 فولت، توفر Shelly Plus 0-10V Dimmer تعتيمًا دقيقًا مع جهاز التحكم عن بعد. إنه قابل للتعديل ويمكن استخدامه مع أي مفتاح عادي لديك في المنزل.
- لا يتطلب موزعًا! تحكم سهل من خلال تطبيق Shelly Smart Control ومعظم المنصات والبروتوكولات، بالإضافة إلى المساعدين الصوتيين. استخدمه مع Alexa أو Home Assistant أو منصة التشغيل الآلي المفضلة لديك
- يدعم التحكم في الإشارة لأنواع متعددة من برامج التشغيل (الأضواء والمحركات والصمامات وما إلى ذلك؛ حسب برنامج التشغيل)
- وضع التعتيم بزر واحد/مزدوج (استخدم مع المفاتيح المادية)
- موسع نطاق واي فاي وبوابة BLE
- معالج سريع للغاية للاستجابة الفورية – ESP32
- يدعم البرمجة النصية وخطافات الويب وMQTT وWebSocket وHTTPS وUDP وTLS والشهادات المخصصة
Why Shelly Plus 1?
Use it with your existing switches!
No need to invest in new, specialized dimmer switches that clash with your home’s aesthetic. Now, even buttons that weren’t originally designed for dimming can work with Shelly Plus 0-10V Dimmer. You can use your favorite style and brands of switches and seamlessly integrate dimming capabilities into your current setup.
Functionalities
Wi-Fi operated
Connect Shelly Plus 0-10V Dimmer to your Wi-Fi network. No HUB required!
Bluetooth
Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Smart schedules
Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.
Flexible input control
Use it with your existing switches, no matter if they’re single or dual button.
Smart scenes
Set custom scenes by combining Shelly Plus 0–10V Dimmer with your other Shelly devices.
Scripting
Shelly Plus 0-10V Dimmer fully supports scripting, allowing you local control and custom functionalities.
Use Cases
Use Cases
Brightness that suits your activities
Depending on your activities and the time of day, different types of light and luminosity are suitable. With Shelly Plus 0-10V Dimmer, you can align the minimum and maximum brightness levels with your driver’s range for exact precision when adjusting your lights. Whether you want to set the ambiance for a relaxing evening or ensure the best brightness for focused tasks, it grants you fine-tuned control to match every moment. No need to navigate through the app – just use your voice!
Use Cases
Personalized light schedules
Shelly Plus 0-10V Dimmer can effortlessly blend with your daily routine. Consider bedtime: Many kids prefer to fall asleep with the lights turned on. You can set schedules that, over an hour, gently dim the room before switching the lights off completely. That way, the little one will be comfortably asleep, and no energy will go to waste!
Use Cases
Set the mood instantly
Shelly Plus 0-10V Dimmer doesn’t stop at schedules- it embraces moments too. With its pre-set lighting scenes, a simple voice command can transform your room. Feel like watching a movie? Just tell Alexa, “Movie night,” and your space instantly adapts, casting the perfect ambiance for your cinematic experience.
Use Cases
Illuminate & fade
Give yourself time to exit a room without bumping into things. Once Shelly BLU Motion doesn’t detect movement, Shelly Plus 0-10V Dimmer doesn’t turn off the lights abruptly. Instead, it can gently fade them over 20 seconds, ensuring you’re never left in the dark. Customize the duration to fit your pace and always ensure a safe exit.
Use Cases
"Night mode" for soft night light
Walking to the bathroom at night could no longer irritate your sleepy eyes. Shelly Plus 0-10V Dimmer has a “Night mode” functionality, setting the lights’ brightness at a low level during the night hours. Now when the lights are turned on manually, through voice, or a motion sensor, they will always be dimmed and soft.
smart home control, perfected
shelly smart control
Get the app on:
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Get the app on:
Full compatibility
Full compatibility
المواصفات
| Physical | |
|---|---|
| Size (HxWxD): | 42x37x17 ±0.5 mm / 1.65×1.46×0.66 ±0.02 in |
| Weight: | 17 g / 0.60 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Mounting: | In-wall |
| Shell material: | Plastic |
| Color: | Shell: 2716C, print: black |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 – 240 VAC ±10% |
| Power consumption: | < 1.2 W |
| Neutral not needed: | No |
| 0-10 V Voltage control type: | Sinking |
| Output circuits ratings | |
| Max control voltage: | 10VDC |
| Max control current: | 0.35 W |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Max. RF power: | < 20 dBm |
| RF band: | 2401 – 2495 МHz |
| Bluetooth | |
| Protocol: | 4.2 |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| Max. RF power: | < 4 dBm |
| RF band: | 2400 – 2483.5 MHz |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| MQTT: | Yes |
| Scripting: | Yes |
