شيلي برو 1PM
58.00 JOD
مفتاح ذكي احترافي أحادي القناة مزود بسكة DIN مع قياس الطاقة
- اتصال بشبكة LAN وWi-Fi وBluetooth
- مخرج واحد، 16 أمبير
- قياس الطاقة
- حماية الحمل من زيادة الطاقة وزيادة الجهد
- تحكم سهل من خلال تطبيق شيلي والبروتوكولات المختلفة والمنصات، بالإضافة إلى المساعدين الصوتيين
Why Shelly Pro 1PM?
The best solution for new home buildings and business facilities

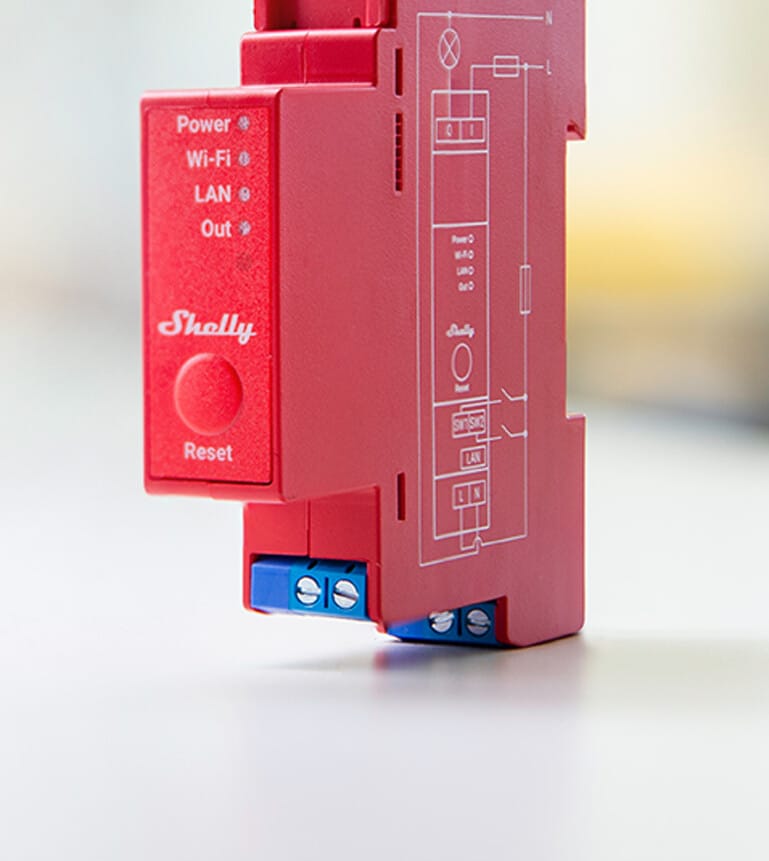

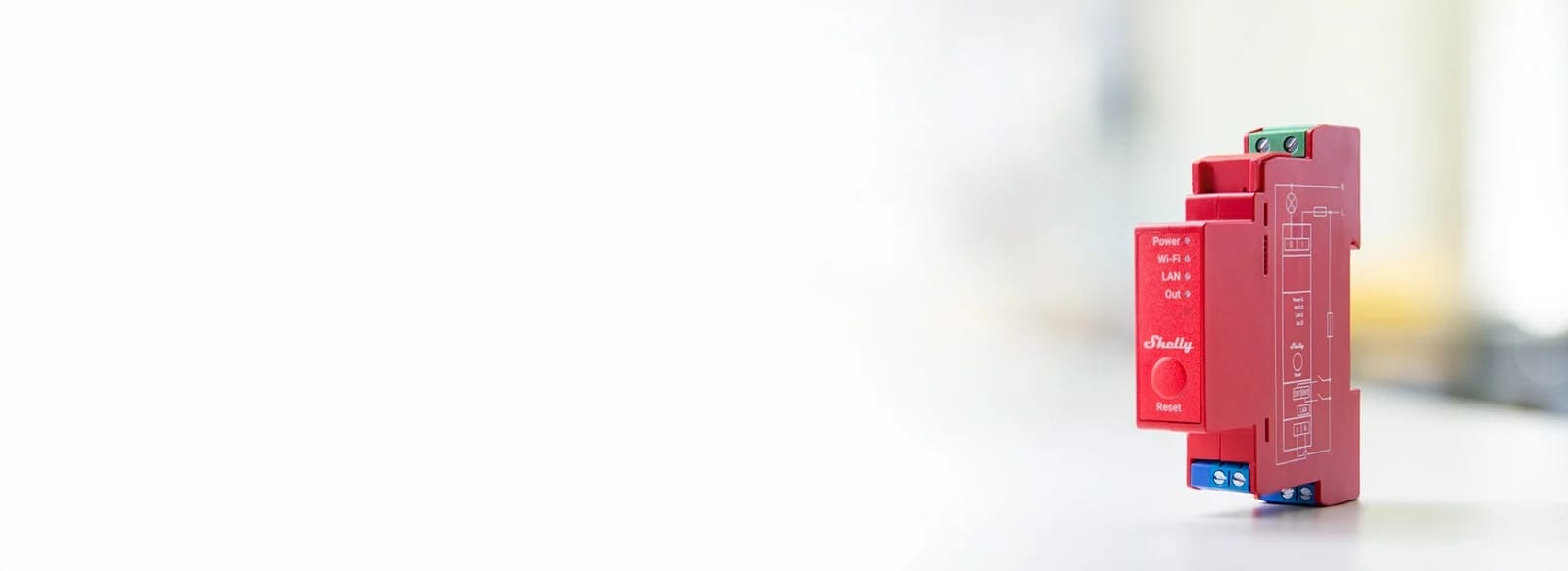

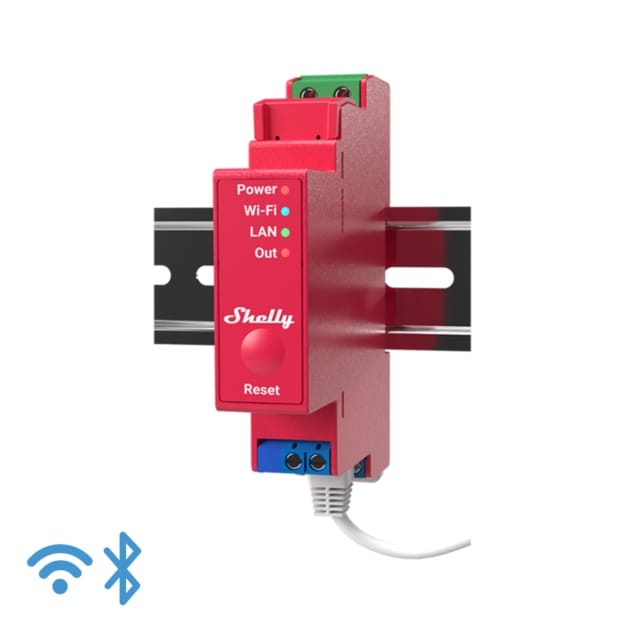

Shelly Pro 1PM is a one-phase, 1-channel relay supporting up to 16A. Equipped with an integrated power meter, Shelly Pro 1PM allows you to measure the precise power consumption of all automated lights or heavier appliances. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. Additionally, Shelly Pro 1PM has scripting functionalities for custom automation scenes based on external data or various occurrences.
Overview
Shelly Pro series
Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Functionalities
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup when needed.
1 channel, 16 A
Shelly Pro 1PM has a total device output of 16A.
Power Monitoring
Shelly Pro 1PM provides precise monitoring of the power consumption.
Wide range of voltage support
Use it to control a wide range of devices and appliances.
Enhanced safety & security
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
Scripting capabilities
Shelly Pro 1PM fully supports mjS scripting, allowing you to create further features and functionalities.
Endless Use Applications
Use Cases
Appliances control & monitoring
Predict monthly costs and plan your spending better! Automate the electrical appliances in the restaurant and track their energy consumption wherever you are. Shelly will inform you in case an appliance is forgotten and left working outside of restaurant working hours, notifying you to switch it off to avoid electricity consumption waste. Additionally, you can set smart schedules and have Shelly cut off the power to all unused electrical appliances during the night and turn them back on right before the kitchen opens.
Use Cases
Efficient floor heating control
Make sure the temperature of your business facility or home is always welcoming – whether it’s a yoga studio, gym changing room, spa center, or your own living room! Control your floor heating based on the current weather forecast or create a scene with Shelly Pro 1PM and Shelly Flood and have the floor heating turned on whenever a decrease in floor temperature is detected.
Use Cases
Avoid unnecessary energy usage by controlling the office equipment power supply
Stop unnecessary energy usage in the office over the weekend! Computers and monitors that somebody forgot to turn off, plugged chargers, lit up desk lights, printers and copy machines left switched on, etc. – all these appliances are consuming energy when nobody is in the office, unnecessarily burdening the monthly bills. Avoid that by setting Shelly Pro 1PM to cut off the power supply of the office appliances over the weekend to save on energy. Use smart scheduling functions to restore the power supply before the employees arrive at the office.
Use Cases
Preventative management
When an electrical appliance is damaged, it doesn’t simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Shelly Pro 1PM, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.
Pro Line Capabilities
Connectivity
Wi-Fi
Working on 2.4 GHz Wi-Fi network, supporting Access Point (AP) and Client Mode (CM) options
Bluetooth
Add devices fast and easy via Bluetooth connection, using the Shelly Cloud App
LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup, when needed.
Safety
Temperature protection
Overpower protection (PM devices)
Overvoltage load protection (PM devices)
Flame Retardant (V-0)
Features
HTTP/HTTPS webhooks
Sunrise/Sunset actions with offsets
Weekly Scheduling
Custom scripts(mJs)
Grouping Scenes
Features
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Wave Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
Full compatibility
Full compatibility
smart home control, perfected
shelly smart control
Get the app on:
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Shelly Smart Control –
one app to control your spaces, energy consumption, and expenses.
Get the app on:
المواصفات
| Physical | |
|---|---|
| Size (HxWxD): | 94x19x69 m±0.5 m / 3.70×0.75×2.71 ±0.02 in |
| Weight: | |
| Mounting: | DIN rail |
| Screw terminals max torque: | 0.4 Nm / 3.54 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors) |
| Shell material: | Plastic |
| Color: | Red |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply voltage AC: | 110 – 240 V |
| Power supply voltage DC: | N/A |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 16 A |
| Max switching current DC: | N/A |
| Sensors, meters | |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
