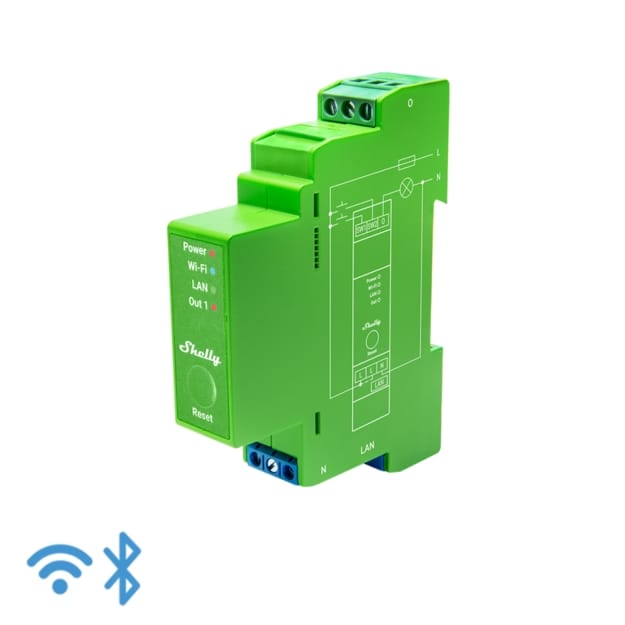

شيلي برو مفتاح تعتيم

53.00 JOD – 62.00 JOD

Years Manufacturer Warranty

Available

Functionalities

PHYSICAL
Dimensions (LxWxH)	94x19x69 mm / 3.70×0.75×2.71 in
Weight	75 g / 2.7 oz
Ambient temperature	-20 °C to 40 °C / -4 °F to 104 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.5 to 2.5 mm2 / 20 to 14 AWG (green connectors) – 0.5 to 1.5 mm2 / 20 to 16 AWG (blue connector) (solid, strand-ed, and bootlace ferrules)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in (green connectors) – 5 to 6 mm / 0.20 to 0.24 in (blue connector)
Power supply	110-240 V~ 50/60 Hz
Power consumption	< 2 W
External protection	max. 10 A, tripping characteristic B or C,6 kA interrupting rating, energy limiting class 3
Supported load types
HV LED lamps (Dimmable)	200 W
Dimmable electronic transformers	200 W
Incandescent Light bulbs	200 W
HV halogen lamp	200 W
Iron-core transformer	200 VA
Dimming type	Trailing edge
RF band	2400 – 2495 MHz
Max. RF power	< 20 dBm
Wi-Fi protocol	802.11 b/g/n
Wi-Fi operational range (depending on local conditions)	up to 50 m / 160 ft outdoors up to 30 m / 100 ft indoors
Bluetooth protocol	4.2
Bluetooth operational range (depending on local conditions)	up to 30 m / 100 ft outdoors up to 10 m / 33 ft indoors
CPU	ESP32-D0WDQ6
Flash	8 MB
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
